01 - Cover Sheet

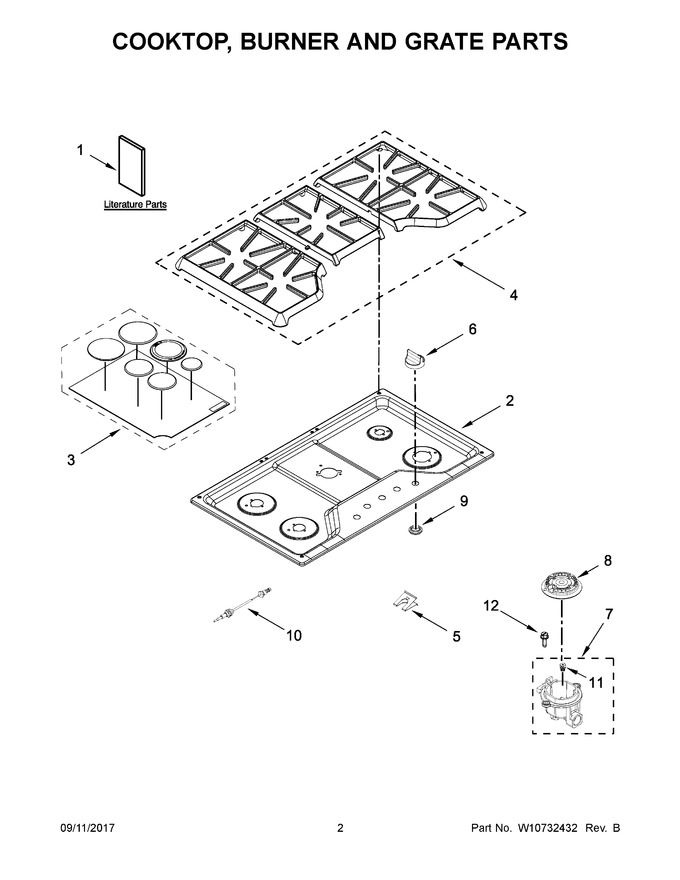

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597144 | Instructions, Installation |
|
- | |||||
| 2 | W10597075 | Cooktop (black) |
|
- | |||||
| 3 | W10832694 | Kit, Burner Cap (black) (Replaces: W10597133) |
|
$ 133.56 | |||||
| 4 | W11411592 | Kit, Grate (black) (Replaces: W10594447) |
|
$ 368.51 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 69.23 | |||||
| 6 | W10895114 | Knobs, Cooktop (black) |
|
$ 71.69 | |||||
| 7 | W10594402 | Holder,orifice (9.1k) (left Front & Left Rear) |
|
$ 64.85 | |||||
| 8 | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 90.22 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 8.19 | |||||
| 10 | W11507531 | Wiring, Electrode (left Front, Right Front & Center) (Replaces: W10541842) |
|
$ 54.74 | |||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 24.54 | |||||
| 12 | W11699921 | Screw (Replaces: W10758282) |
|
$ 13.29 | |||||
| 10A | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 54.80 | ||||
| 11A | W10791073 | Orifice (center) (Replaces: W10609592) |
|
$ 84.11 | |||||
| 11B | W10791079 | Orifice (right Front) (Replaces: W10409144) |
|
$ 84.11 | |||||
| 11C | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 81.27 | |||||
| 1A | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W10648065 | Guide, Use & Care |
|
- | |||||
| 1C | W10733303 | Instructions, Lp Conversion |
|
- | |||||
| 2A | W10597077 | Cooktop (stainless) |
|
- | |||||
| 6A | W11729014 | Knobs, Cooktop (stainless) (Replaces: W10853672) |
|
$ 59.59 | |||||
| 7A | W10609591 | Holder, Orifice (15k) (center) |
|
$ 65.13 | |||||
| 7B | W10597159 | Holder, Orifice (12k) (right Front) |
|
$ 65.21 | |||||
| 7C | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 34.93 | |||||
| 8A | WP8286815 | Head, Burner (right Front & Center) (Replaces: 8286815) |
|
Immediately | $ 112.13 | ||||
| 8B | WP8286814 | Head, Burner (left Front & Left Rear) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10676661 | Kit, Lp Conversion |
|
$ 37.92 | |||||
| NI | WP7101P062-60 | Screw (used For Tie Down Bracket) (Replaces: 7101P062-60) |
|
$ 7.79 | |||||
| NI | WP3801F935-51 | Bracket, Tie Down (Replaces: 3801F935-51) |
|
$ 38.94 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11561443 | Harness, Main (Replaces: W10868535) |
|
$ 57.41 | |||||
| NI | W10392003 | Cord, Power |
|
$ 145.50 | |||||
| NI | W10132200 | Relief, Strain |
|
- |
