View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

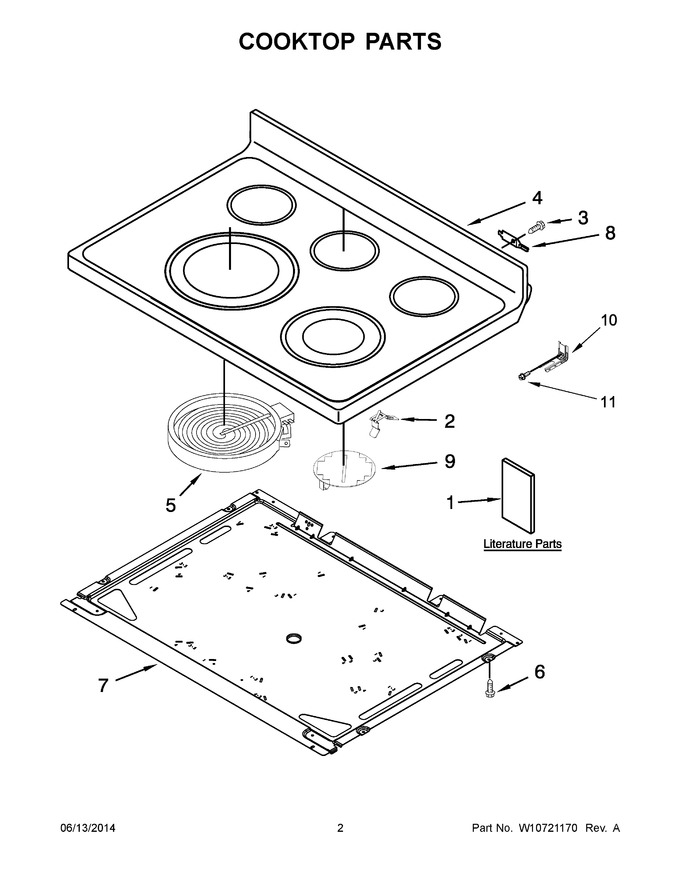

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403811 | Instructions, Installation |
|
- | |||||
| 1 | W10392932 | Owners Manual |
|
- | |||||
| 1 | W10392960 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10472039 | Cooktop (white) (Replaces: W10411866) |
|
$ 657.15 | |||||
| 4 | W10472038 | Cooktop (black) (Replaces: W10410542) |
|
$ 756.59 | |||||
| 5 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 5 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 168.46 | ||||
| 5 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 5 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10162040) |
|
Immediately | $ 342.63 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 9 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 132.95 | |||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| NI | W11134550 | Harness, Cooktop (right) (Replaces: W10349654) |
|
$ 228.90 | |||||
| NI | W11212183 | Harness, Sensor (Replaces: W10349640) |
|
$ 235.64 | |||||
| NI | W10629305 | Harness, Wire (main) |
|
- | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 117.26 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10349716 | Harness, Cooktop (left) |
|
$ 139.81 |
