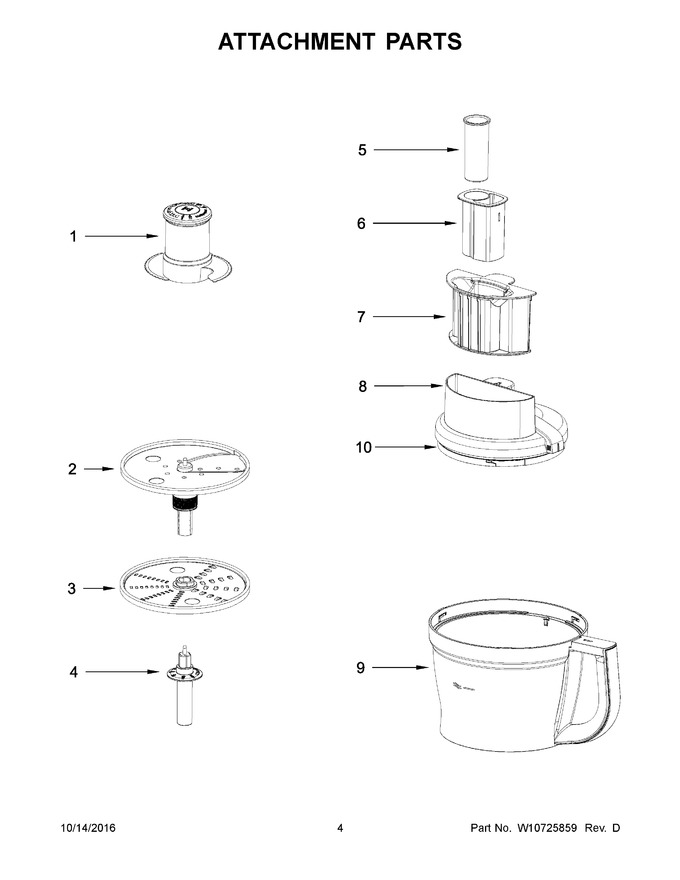

03 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10648616 | Blade, Multipurpose |
|
$ 61.06 | |||||
| 2 | W10648620 | Blade, Adjustable Slicing |
|
- | |||||
| 3 | W10648621 | Disc, Shredding |
|
$ 69.58 | |||||
| 4 | W10466843 | Adapter, Shredding |
|
$ 6.02 | |||||
| 5 | WPW10466847 | Pusher, Round (Replaces: W10466847) |
|
$ 25.15 | |||||
| 6 | WPW10466865 | Pusher, Regular (Replaces: W10466865) |
|
$ 26.08 | |||||
| 7 | W11027645 | Pusher, Wide Mouth (Replaces: W10466876) |
|
Immediately | $ 35.84 | ||||
| 8 | W10466844 | Lid, Clear |
|
$ 26.40 | |||||
| 9 | WPW10466845 | Bowl, 9-cup (clear) (Replaces: W10466845) |
|
$ 96.01 | |||||
| 10 | W11731723 | Gasket, Lid (Replaces: W10480167) |
|
$ 6.96 |
