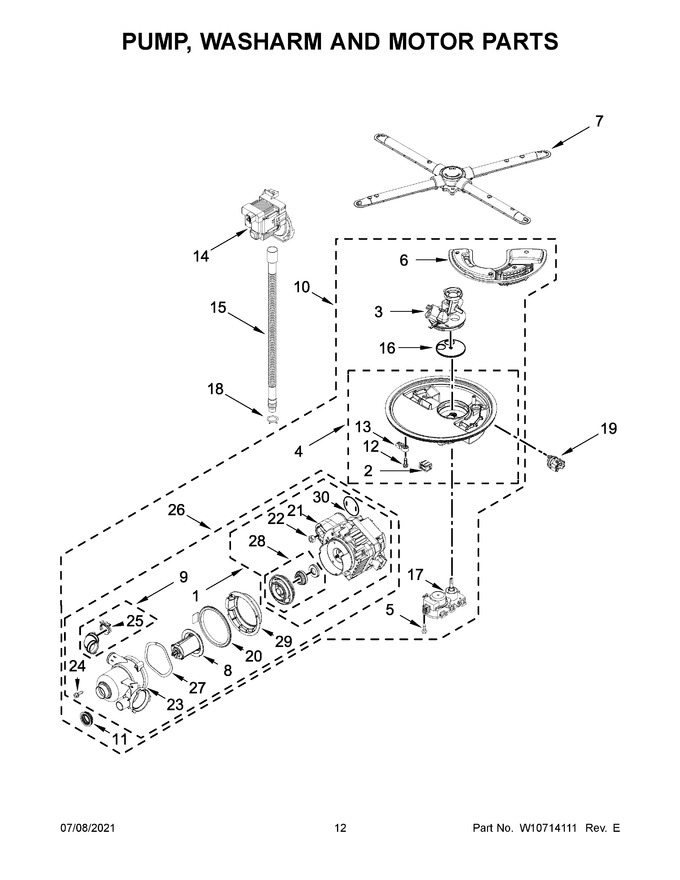

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10907617 | Motor (also Order Items 9 & 11) (Replaces: W10404271) |
|
$ 425.94 | |||||
| 2 | W10647236 | Motor, Isolator |
|
$ 19.59 | |||||
| 3 | WPW10455272 | Cover, Outlet (Replaces: W10455272) |
|
Immediately | $ 53.66 | ||||
| 4 | W10465328 | Sump With Seal (also Order Items 9 & 11) |
|
- | |||||
| 5 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 6 | W10832800 | Grate Assembly, Course (Replaces: W10506768) |
|
- | |||||
| 7 | W11553338 | Sprayarm Assembly, Lower (Replaces: W10884490) |
|
$ 149.03 | |||||
| 8 | W11084156 | Filter Assembly, Pump (Replaces: W10713298) |
|
Immediately | $ 169.17 | ||||
| 9 | W10730897 | Hose Assembly (includes 2 Clamps) (Replaces: W10647237) |
|
$ 267.23 | |||||
| 10 | W10805015 | Motor & Sump Assembly (Replaces: W10464691) |
|
Immediately | $ 506.45 | ||||
| 11 | W11177741 | Gasket, Tub (Replaces: W10660528) |
|
Immediately | $ 80.43 | ||||
| 12 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 13 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 14 | WPW10348269 | Pump, Drain (Replaces: W10348269) |
|
Immediately | $ 97.46 | ||||
| 15 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 16 | WPW10476221 | Disc, Diverter (Replaces: W10476221) |
|
Immediately | $ 27.41 | ||||
| 17 | W10537869 | Motor, Diverter (Replaces: W10849439) |
|
Immediately | $ 114.36 | ||||
| 18 | WP8269146 | Clamp, Hose (Replaces: 8269146) |
|
$ 8.59 | |||||
| 19 | WPW10705575 | Indicator, Optical Wash (Replaces: W10705575) |
|
Immediately | $ 43.81 | ||||
| 20 | W10380239 | Ring, Volute |
|
$ 29.28 | |||||
| 21 | W11662065 | Capacitor (Replaces: W10591575) |
|
Immediately | $ 174.83 | ||||
| 22 | 8533949 | Nut |
|
$ 86.78 | |||||
| 23 | W10708008 | Housing, Pump (Replaces: W10390335) |
|
$ 102.33 | |||||
| 24 | W10467002 | Screw |
|
- | |||||
| 25 | W10783615 | Clamp, Hose (Replaces: W10466656) |
|
Immediately | $ 18.60 | ||||
| 26 | W10902589 | Pump Assembly (Replaces: W10390342) |
|
$ 475.98 | |||||
| 27 | W10608271 | Spring, Compression |
|
- | |||||
| 28 | W10783130 | Impeller Assembly (also Order Item 27) (Replaces: W10399652) |
|
$ 141.23 | |||||
| 29 | W10723279 | Volute (Replaces: W10390360) |
|
$ 68.67 | |||||
| 30 | W10710432 | Shield, Capacitor |
|
$ 9.41 |
