Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10290493 Shelf, Snack Pan Special Order $ 117.66

2 WPW10282541 Assembly, Cover   (Replaces: W10282541) Special Order $ 288.16

3 WPW10542030 Snack Pan   (Replaces: W10542030) Special Order $ 277.39

4 W11164152 Roller   (Replaces: W10278139) In-Stock Immediately $ 15.74

5 WPW10257246 Axle, Roller   (Replaces: W10257246) Special Order $ 36.54

6 W10531077 Crisper Pan Special Order $ 67.29

7 WPW10531079 Meat Pan   (Replaces: W10531079) In-Stock Immediately $ 206.39

8 WPW10542020 Trim, Handle   (Replaces: W10542020) Special Order $ 116.28

9 WPW10531022 Trim, Handle   (Replaces: W10531022) Special Order $ 108.10

10 WPW10531023 Trim, Handle   (Replaces: W10531023) Special Order $ 109.41

11 W10257334 Slide, Humidity Special Order $ 61.15

12 W10316452 Housing, Humidity Special Order $ 92.65

13 WPW10321180 Shelf Assembly   (Replaces: W10321180) Special Order $ 288.44


    View Diagram in Separate Window     Print Icon   Print Part List

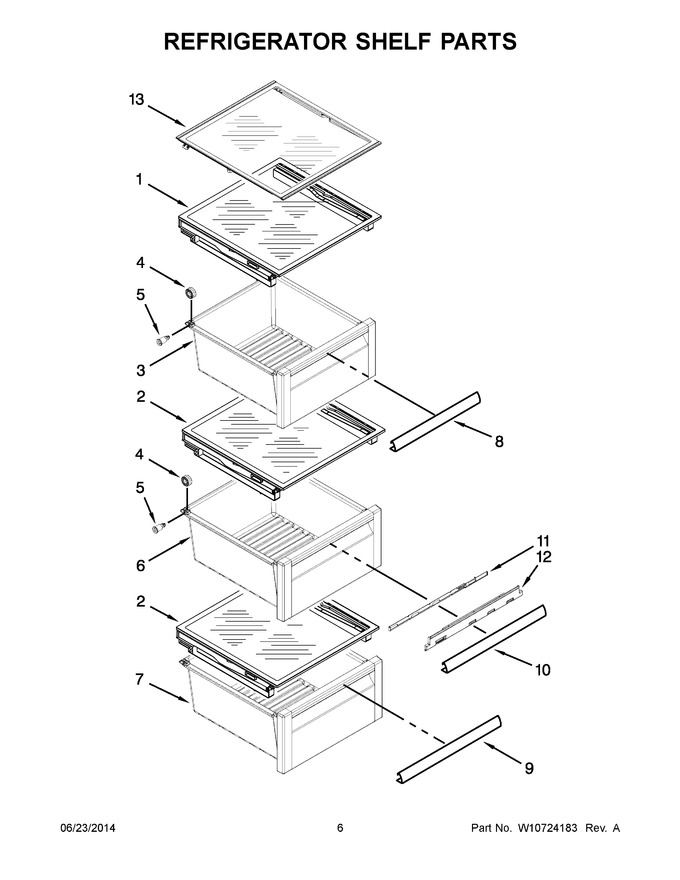

Diagram for KSF26C4XYY04
