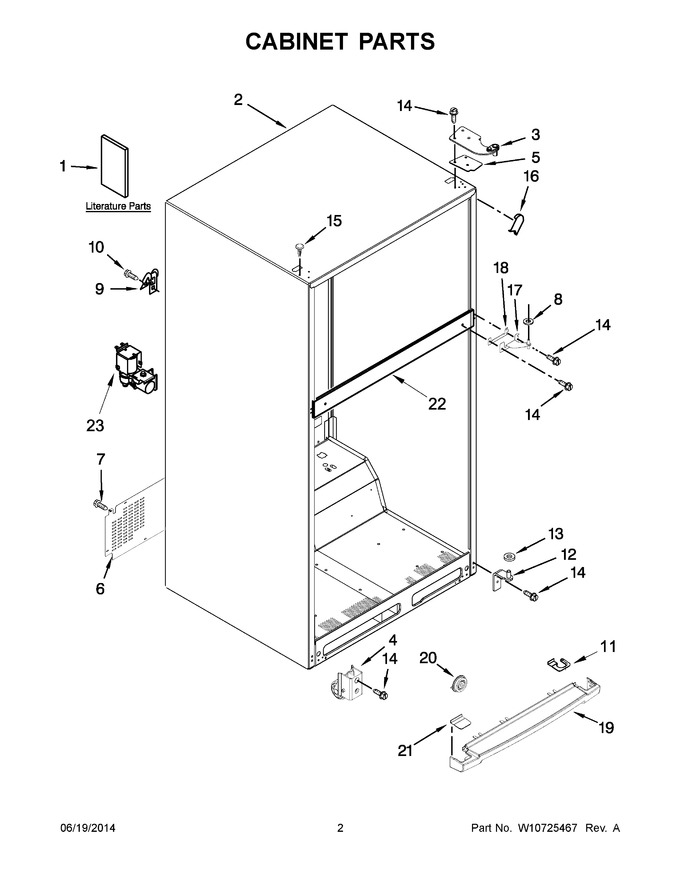

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10359360		Energy Label		Appelez-nous	-
1	W10359376		Use And Care Guide		Appelez-nous	-
1	W10712371		Service And Wiring Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WPW10300065		Assembly, Top Right Hinge   (Replaces: W10300065)				$ 13.94
4	W10849386		Assembly, Roller   (Replaces: W10327136)				$ 114.75
5	W10883637		Shim, Top Hinge   (Replaces: W10338247)				$ 15.95
6	WPW10384414		Cover, Unit   (Replaces: W10384414)				$ 106.82
7	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
8	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
9	549193		Clamp, Power Cord				$ 14.06
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	W10381064		Cover, Toe Grille (hinge Side) (grey)				$ 70.38
11	W10381060		Cover, Toe Grille (hinge Side) (black)				$ 36.12
11	W10381059		Cover, Toe Grille (hinge Side) (white)				$ 87.57
12	WP2254473		Hinge, Bottom   (Replaces: 2254473)				$ 9.28
13	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 10.74
14	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
15	WPW10520305		Plug, Hole (black)   (Replaces: W10520305)				$ 19.18
15	WPW10520304		Plug, Hole (white)   (Replaces: W10520304)			Immediately	$ 19.22
15	WPW10520307		Plug, Hole (grey)   (Replaces: W10520307)			Immediately	$ 7.55
16	W11252732		Filler, Corner (black)   (Replaces: W10283960)				$ 13.07
16	W10851579		Filler, Corner (grey)   (Replaces: W10283961)			Immediately	$ 7.55
16	WPW10283959		Filler, Corner (white)   (Replaces: W10283959)				$ 8.21
17	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
18	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 11.18
19	WPW10300129		Grille (white)   (Replaces: W10300129)				$ 109.55
19	WPW10353941		Grille (grey)   (Replaces: W10353941)				$ 153.23
19	WPW10353939		Grille (black)   (Replaces: W10353939)				$ 169.90
20	W10331226		Drum, Toe Grille				$ 47.42
21	WPW10339257		Cover, Toe Grille (white)   (Replaces: W10339257)				$ 85.42
21	W10353930		Cover, Toe Grille (black)				$ 85.34
21	WPW10353932		Cover, Toe Grille (grey)   (Replaces: W10353932)				$ 85.50
22	N/P		Rail, Center (not Serviced)		Appelez-nous	-
23	WPW10279909		Valve, Inlet   (Replaces: W10279909)				$ 189.89
