01 - Cover Sheet

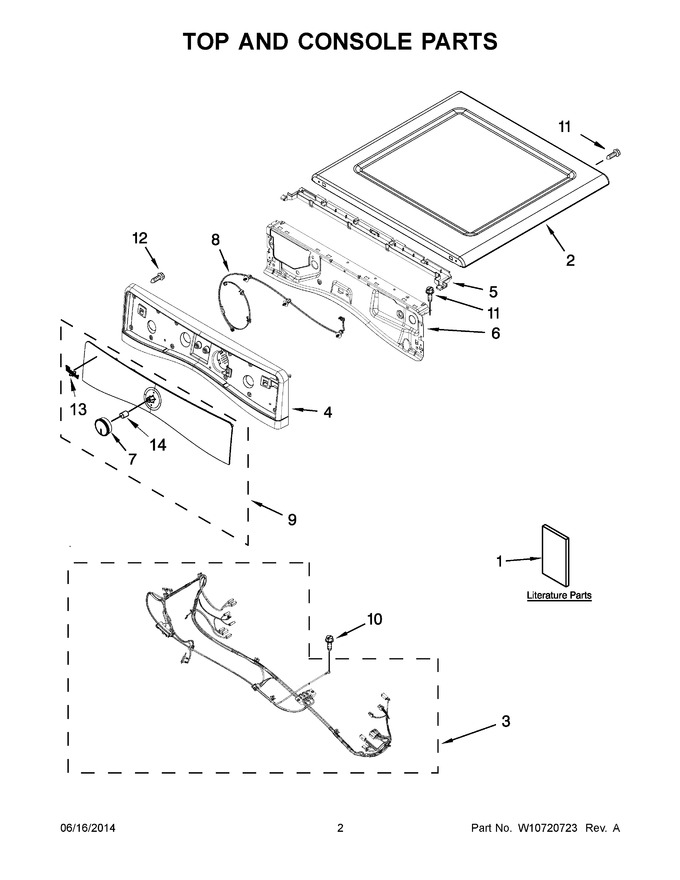

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10606148 | Tech Sheet |
|
- | |||||
| 1 | W10676163 | Installation Instructions |
|
- | |||||
| 1 | W10678959 | Quick Start Guide |
|
- | |||||
| 1 | W10596019 | Use And Care Guide |
|
- | |||||
| 1 | W10504396 | Wiring Diagram |
|
- | |||||
| 2 | W10628221 | Top (black) |
|
$ 270.03 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 2 | WPW10316282 | Top (silver) (Replaces: W10316282) |
|
$ 346.19 | |||||
| 2 | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 | |||||
| 3 | W10526660 | Harness, Main |
|
$ 153.45 | |||||
| 4 | W10433196 | Panel, Console (black) |
|
$ 361.22 | |||||
| 4 | WPW10446407 | Panel, Console (white) (Replaces: W10446407) |
|
$ 187.68 | |||||
| 4 | W10504272 | Panel, Console (silver) |
|
$ 316.67 | |||||
| 4 | WPW10463687 | Panel, Console (chrome Shadow) (Replaces: W10463687) |
|
$ 294.06 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 90.94 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | WPW10631127 | Knob, Timer (dryer) (grey) (Replaces: W10631127) |
|
$ 41.95 | |||||
| 7 | W10875909 | Knob, Timer (dryer) (white) (Replaces: W10631126) |
|
Immediately | $ 52.99 | ||||
| 7 | W10631128 | Knob, Timer (dryer) (silver) |
|
$ 43.42 | |||||
| 8 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 33.61 | |||||
| 9 | W10750362 | Iml Assembly (black) (Replaces: W10433154) |
|
- | |||||
| 9 | W10750360 | Iml Assembly (chrome Shadow) (Replaces: W10433152) |
|
$ 823.73 | |||||
| 9 | W10750361 | Iml Assembly (silver) (Replaces: W10433153) |
|
$ 824.67 | |||||
| 9 | W10750359 | Iml Assembly (white) (Replaces: W10433151) |
|
- | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | W10489172 | Screw |
|
$ 11.98 | |||||
| 13 | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 13 | W11178521 | Badge (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 |
