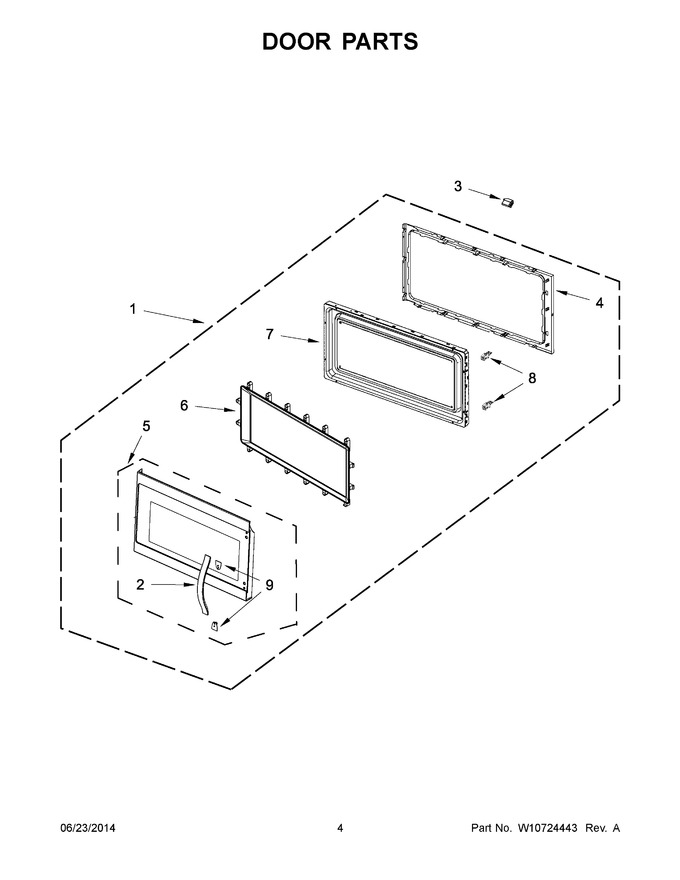

03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629792		Door, Complete (white)				$ 361.84
1	W10629793		Door, Complete (black)				$ 382.40
1	W10629794		Door, Complete (stainless)				$ 291.27
1	W10629795		Door, Complete (white Ice)				$ 312.99
1	W10629796		Door, Complete (black Ice)				$ 411.15
2	W10565242		Handle (white)		Appelez-nous	-
2	W10514244		Handle (black)				$ 88.96
2	W10513990		Handle (stainless)				$ 190.74
3	W10643975		Stopper, Door (for White & White Ice Models)				$ 22.71
3	W10643974		Stopper, Door (for Black, Stainless & Black Ice Models)				$ 22.65
4	W10647773		Frame, Inner (for White & White Ice Models)				$ 89.40
4	W10647772		Frame, Inner (for Black, Stainless & Black Ice Models)				$ 100.31
5	W10647766		Assembly, Door Frame (white)		Appelez-nous	-
5	W10647767		Assembly, Door Frame (black)				$ 313.50
5	W10647765		Assembly, Door Frame (stainless)				$ 356.91
5	W10647768		Assembly, Door Frame (white Ice)				$ 359.88
5	W10647769		Assembly, Door Frame (black Ice)		Appelez-nous	-
6	W10562560		Plate, Steam Protection (for White & White Ice Models)		Appelez-nous	-
6	W10514243		Plate, Steam Protection (for Black, Stainless & Black Ice Models)				$ 79.07
7	W10647794		Foil, Door (for White & White Ice Models)		Appelez-nous	-
7	W10647793		Foil, Door (for Black, Stainless & Black Ice Models)				$ 201.62
8	W10740455		Hooks, Door   (Replaces: W10489272)			Immediately	$ 56.20
9	W10514261		Spacer, Handle		Appelez-nous	-
