SELECT A DIAGRAM
New Model Search:

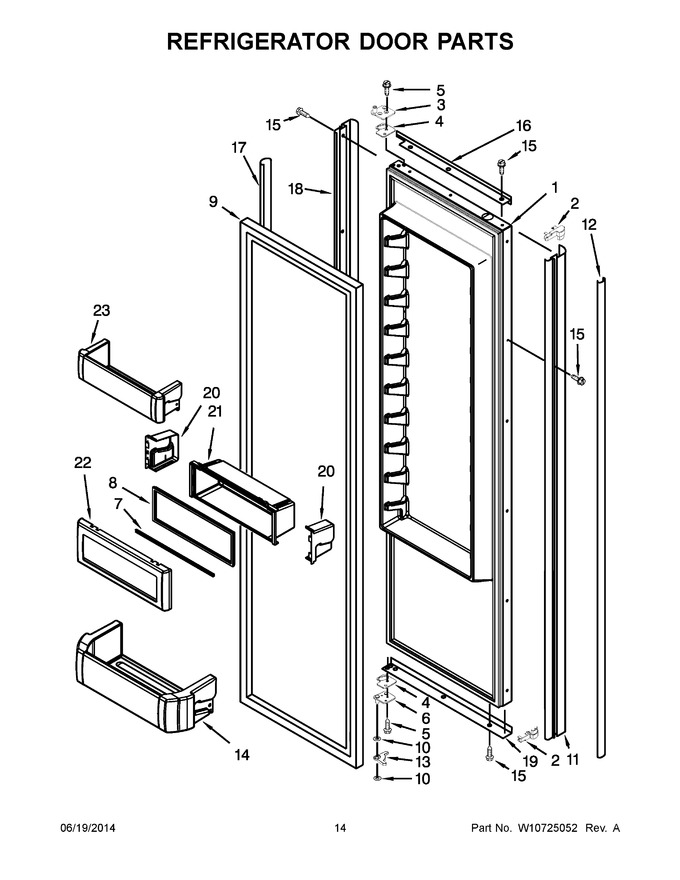

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193491 | Assembly, Refrigerator Door |
|
- | |||||
| 2 | 2207457 | Trim, Corner |
|
$ 51.41 | |||||
| 3 | W10484480 | Hinge Assembly, Top |
|
$ 57.64 | |||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | 2252293 | Assembly, Bottom Hinge |
|
- | |||||
| 7 | W11348580 | Rail, Lid (Replaces: 2222797) |
|
Immediately | $ 162.99 | ||||
| 8 | W11348580 | Gasket, Utility Bin (Replaces: 2222983) |
|
Immediately | $ 162.99 | ||||
| 9 | WP2266903 | Gasket, Door (Replaces: W10694212) |
|
Immediately | $ 306.02 | ||||
| 10 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 11 | 2309497S | Trim, Door (handle Side) (aluminum) |
|
$ 290.72 | |||||
| 12 | 2314003S | Cover, Trim (handle Side) (aluminum) |
|
$ 157.17 | |||||
| 13 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 34.45 | ||||
| 14 | W10323748 | Bin, Gallon Door |
|
$ 109.60 | |||||
| 15 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 16 | 2309487S | Trim, Top Door (aluminum) |
|
$ 212.65 | |||||
| 17 | 2259448S | Trim, Cover (hinge Side) (aluminum) |
|
$ 161.55 | |||||
| 18 | 2309498S | Trim, Door (hinge Side) (aluminum) |
|
$ 291.94 | |||||
| 19 | 2309493S | Trim, Bottom Door (aluminum) |
|
- | |||||
| 20 | WPW10323172 | End Cap, Bin (right Hand) (Replaces: W10323172) |
|
$ 7.74 | |||||
| 20 | WPW10323173 | End Cap, Bin (left Hand) (Replaces: W10323173) |
|
$ 7.74 | |||||
| 21 | W11348580 | Bin, Utility Center (Replaces: W10323037) |
|
Immediately | $ 162.99 | ||||
| 22 | W11348580 | Door, Utility Bin (Replaces: 2257617) |
|
Immediately | $ 162.99 | ||||
| 23 | W11752086 | Bin, Shallow Door (Replaces: W10323600) |
|
$ 61.37 |
