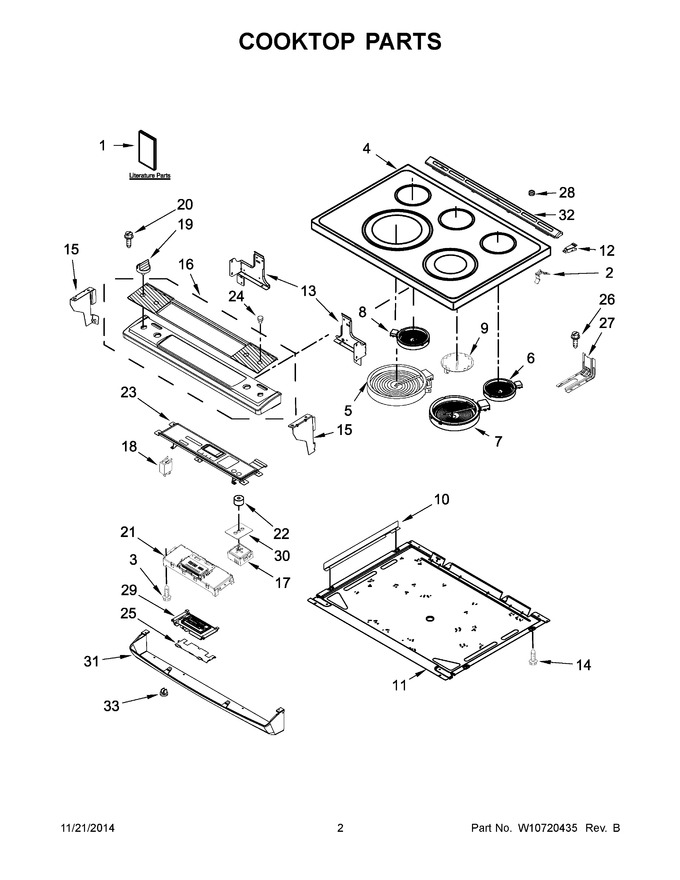

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665255 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10727025 | Cooktop (white) (Replaces: W10536288) |
|
$ 557.74 | |||||
| 5 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 8 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 223.48 | |||||
| 9 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 132.95 | |||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W10728521 | Console, Panel (white) (Replaces: W10547074) |
|
$ 306.84 | |||||
| 17 | W10857622 | Switch, Infinite (dual) (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 19 | W10828837 | Knob (stainless) (Replaces: W10569582) |
|
Immediately | $ 69.89 | ||||
| 20 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 21 | W10884488 | Electronic Control Mrc2 (Replaces: W10453979) |
|
Immediately | $ 527.65 | ||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| 23 | W10728530 | Overlay, Active (white) (Replaces: W10145861) |
|
Immediately | $ 338.84 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | 7101P485- | Screw, Anti-tip |
|
- | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 29 | WPW10603098 | Assembly, Display (Replaces: W10603098) |
|
Immediately | $ 259.53 | ||||
| 30 | 7201P077- | Gasket, Infinite Switch |
|
- | |||||
| 31 | W10570528 | Console, Lower Panel (white) |
|
$ 238.47 | |||||
| 32 | W10636527 | Vent, Trim Top (white) |
|
$ 251.33 | |||||
| 33 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 13B | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 16A | W10728517 | Console, Panel (black) (Replaces: W10547073) |
|
$ 333.00 | |||||
| 16B | W10728516 | Console, Panel (stainless) (Replaces: W10547072) |
|
Immediately | $ 408.30 | ||||
| 17A | W10911303 | Switch, Infinite (single) (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 17B | W10917724 | Switch, Infinite (hyper) (right Front) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 17C | WPW10295048 | Switch, Infinite (single) (left Rear) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 1A | W10665260 | Use And Care Guide |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1E | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1F | W10665230 | Wiring Diagram |
|
- | |||||
| 23A | W10728531 | Overlay, Active (stainless) (Replaces: W10145860) |
|
Immediately | $ 335.84 | ||||
| 31A | W11218703 | Console, Lower Panel (black) (Replaces: W10570527) |
|
Immediately | $ 162.27 | ||||
| 31B | W10581493 | Console, Lower Panel (stainless) |
|
$ 126.41 | |||||
| 32A | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 4A | W10727026 | Cooktop (black) (Replaces: W10536289) |
|
$ 585.30 | |||||
| NI | W11207143 | Harness, Console (Replaces: W10580298) |
|
$ 242.72 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W10580243 | Harness, Cooktop |
|
$ 179.07 | |||||
| NI | W10664316 | Clip, Harness |
|
$ 20.97 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580296 | Harness, Main |
|
- | |||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 236.93 |
