01 - Cover Sheet

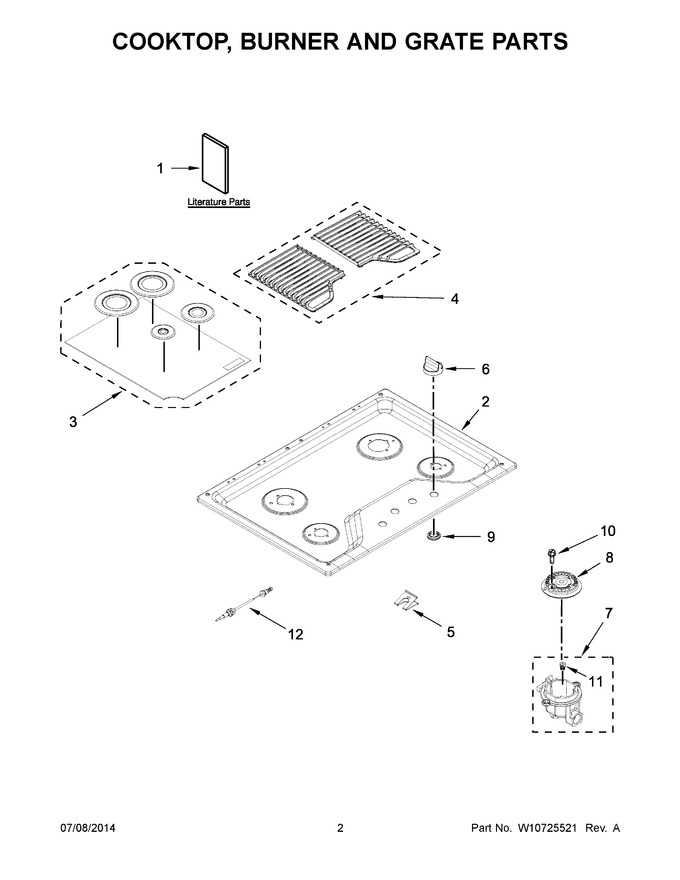

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597144 | Installation Instructions |
|
- | |||||
| 1 | W10672375 | Undercounter Install Instructions |
|
- | |||||
| 1 | W10648064 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10597079 | Cooktop (stainless) |
|
$ 408.74 | |||||
| 2 | W10597080 | Cooktop (black) |
|
- | |||||
| 3 | W10597131 | Kit, Burner Cap (black) |
|
$ 230.01 | |||||
| 4 | W10597186 | Kit, Grate (black) |
|
$ 574.82 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 76.92 | |||||
| 6 | WPW10646805 | Knobs, Cooktop (stainless) (Replaces: W10646805) |
|
$ 86.09 | |||||
| 6 | W10826855 | Knobs, Cooktop (black) (Replaces: W10594479) |
|
Immediately | $ 23.56 | ||||
| 7 | W10594399 | Holder, Orifice (5k) (left Front) |
|
$ 38.81 | |||||
| 7 | W10594402 | Holder,orifice (9.1k) (right Front) |
|
$ 72.06 | |||||
| 7 | W10597159 | Holder, Orifice (12k) (right Rear) |
|
$ 72.45 | |||||
| 7 | W10611437 | Holder, Orifice (18k) (left Rear) |
|
- | |||||
| 8 | W10611436 | Head, Burner (left Rear) |
|
$ 105.89 | |||||
| 8 | WP8286814 | Head, Burner (right Front) (Replaces: 8286814) |
|
Immediately | $ 124.59 | ||||
| 8 | WP8286815 | Head, Burner (right Rear) (Replaces: 8286815) |
|
Immediately | $ 74.38 | ||||
| 8 | WP8286813 | Head, Burner (left Front) (Replaces: 8286813) |
|
$ 95.00 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 9.10 | |||||
| 10 | W11676349 | Screw (Replaces: 8286921) |
|
Immediately | $ 14.76 | ||||
| 11 | W10791079 | Orifice (right Rear) (Replaces: W10409144) |
|
$ 93.46 | |||||
| 11 | W10652710 | Orifice (right Front) |
|
$ 27.27 | |||||
| 11 | W10640097 | Orifice (left Rear) |
|
- | |||||
| 11 | W10791082 | Orifice (left Front) (Replaces: W10652711) |
|
$ 90.30 | |||||
| 12 | W10611443 | Wiring, Electrode (left Rear) |
|
$ 93.64 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front & Right Front) (Replaces: W10541842) |
|
$ 60.82 | |||||
| 12 | W11507532 | Wiring, Electrode (right Rear) (Replaces: W10541843) |
|
Immediately | $ 60.89 |
