| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

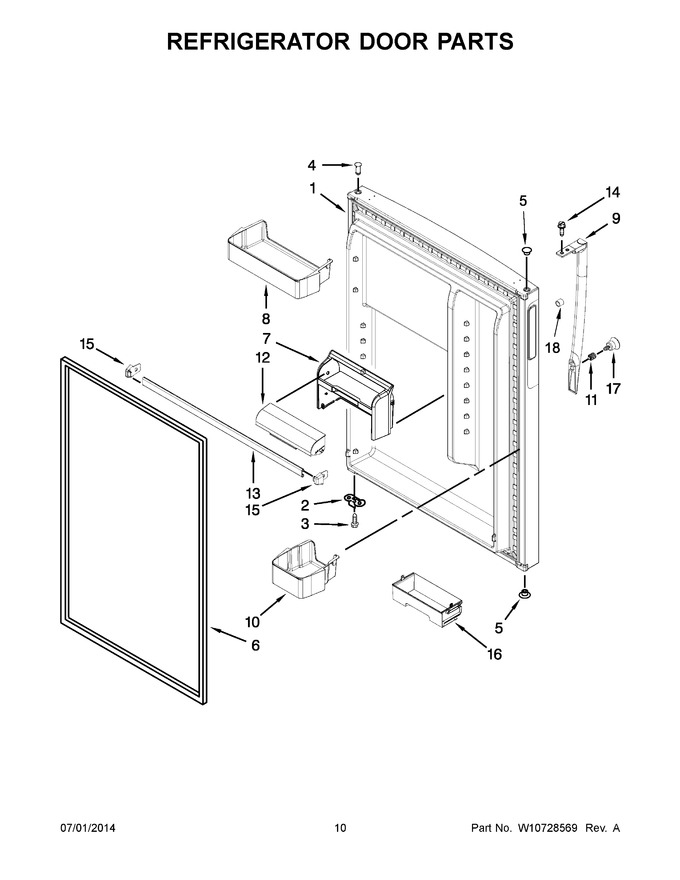

| 1 | W10406237 | Refrigerator Door (includes Illus. 4 & 6) (stainless) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2254517 | Hole Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 6 | W11624977 | Door Gasket, Magnetic (grey) (Replaces: W10279664) |
|
$ 370.52 | |||||
| 7 | W10308809 | Housing, Compartment |
|
$ 35.60 | |||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | W11765172 | Handle (titanium Sparkle) (Replaces: W10646617) |
|
Immediately | $ 125.17 | ||||
| 10 | WPW10308867 | Bin Short (Replaces: W10308867) |
|
$ 73.84 | |||||
| 11 | 690046 | Screw, Set |
|
- | |||||
| 12 | WPW10308843 | Lid, Utility Flip (Replaces: W10308843) |
|
$ 78.98 | |||||
| 13 | W10469909 | Trim, Door Shelf |
|
$ 57.41 | |||||
| 14 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 15 | W10338485 | Cap, Trim End (left Hand) |
|
$ 10.41 | |||||
| 15 | W10308871 | Cap, Trim End (right Hand) |
|
$ 10.44 | |||||
| 16 | W10308845 | Caddy, Can |
|
$ 40.40 | |||||
| 17 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 | ||||
| 18 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 16.11 |
