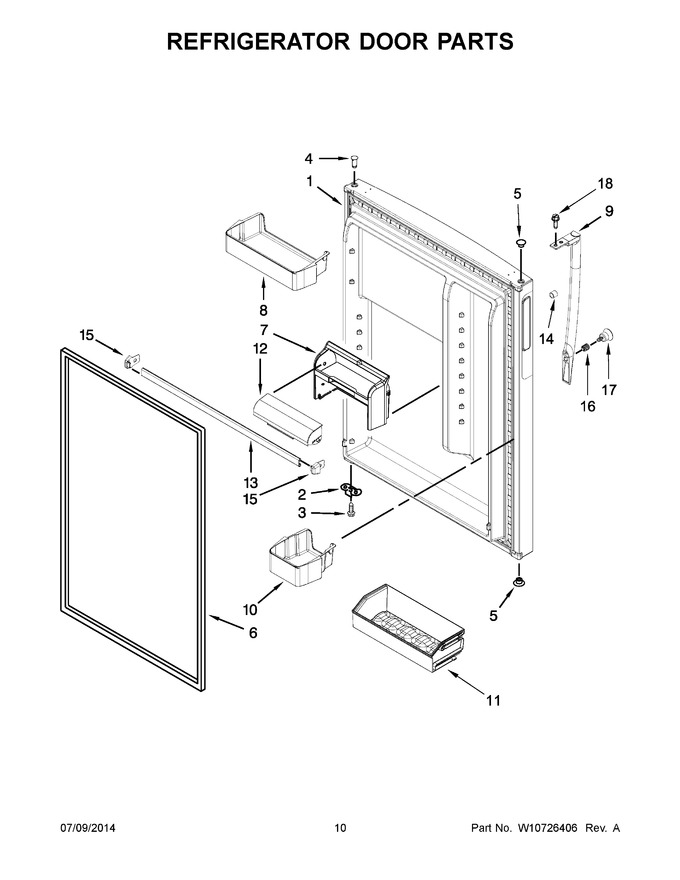

06 - Refrigerator Door Parts


07 - Unit Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10406240		Refrigerator Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
1	W10406239		Refrigerator Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
4	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
5	WP2212648		Hole Plug, Hinge Sleeve (white)   (Replaces: 2212648)			Immediately	$ 8.19
5	WP2212651		Hole Plug, Hinge Sleeve (black)   (Replaces: 2212651)				$ 24.21
6	2159061		Door Gasket, Magnetic (beige)   (Replaces: 2202875)			Immediately	$ 183.67
6	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 330.95
7	W10308809		Housing, Compartment				$ 35.60
8	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 89.09
9	WPW10498430		Handle (black)   (Replaces: W10498430)				$ 121.29
9	WPW10498429		Handle (white)   (Replaces: W10498429)				$ 175.09
10	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 77.70
11	W10308845		Caddy, Can				$ 40.40
12	WPW10308843		Lid, Utility Flip   (Replaces: W10308843)				$ 78.98
13	WPW10469911		Trim, Door Shelf   (Replaces: W10469911)				$ 104.53
14	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 16.11
15	W10308871		Cap, Trim End (right Hand)				$ 10.44
15	W10338485		Cap, Trim End (left Hand)				$ 10.41
16	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.66
17	690046		Screw, Set		Appelez-nous	-
18	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
