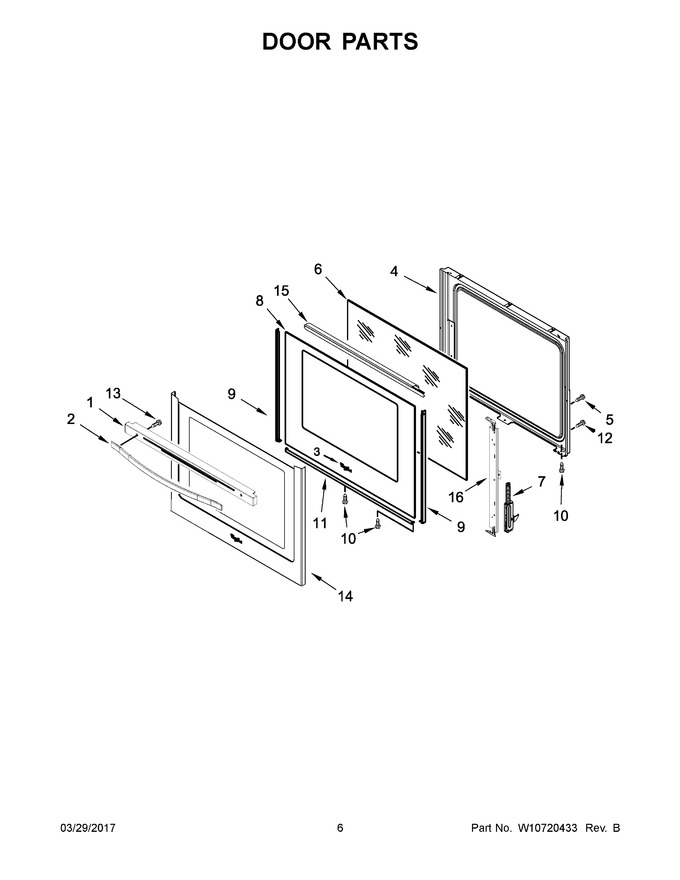

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 125.35
2	W10300489		Assembly, Door Handle (white)			Immediately	$ 244.88
3	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 63.13
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
7	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
8	WPW10333987		Assembly, Outer Door (white)   (Replaces: W10333987)			Immediately	$ 322.36
9	W10334003		Trim, Door Side (white)			Immediately	$ 84.58
10	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
11	WPW10333990		Trim, Door (white)   (Replaces: W10333990)			Immediately	$ 51.90
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
13	WPW10317886		Screw   (Replaces: W10465151)			Immediately	$ 8.20
14	WPW10704053		Glass Assembly, Outer Door (stainless)   (Replaces: W10704053)				$ 390.18
15	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
16	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
11A	W10334031		Trim, Door (black)				$ 77.86
1A	W10294855		Trim, Vent (black)			Immediately	$ 119.88
1B	W10335333		Trim, Vent (stainless)				$ 174.97
2A	W10300490		Assembly, Door Handle (black)			Immediately	$ 156.75
2B	WPW10618239		Assembly, Door Handle (stainless)   (Replaces: W10254687)			Immediately	$ 175.54
3A	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13
8A	WPW10333988		Assembly, Outer Door (black)   (Replaces: W10333988)				$ 354.40
9A	W10334004		Trim, Door Side (black)				$ 233.76
