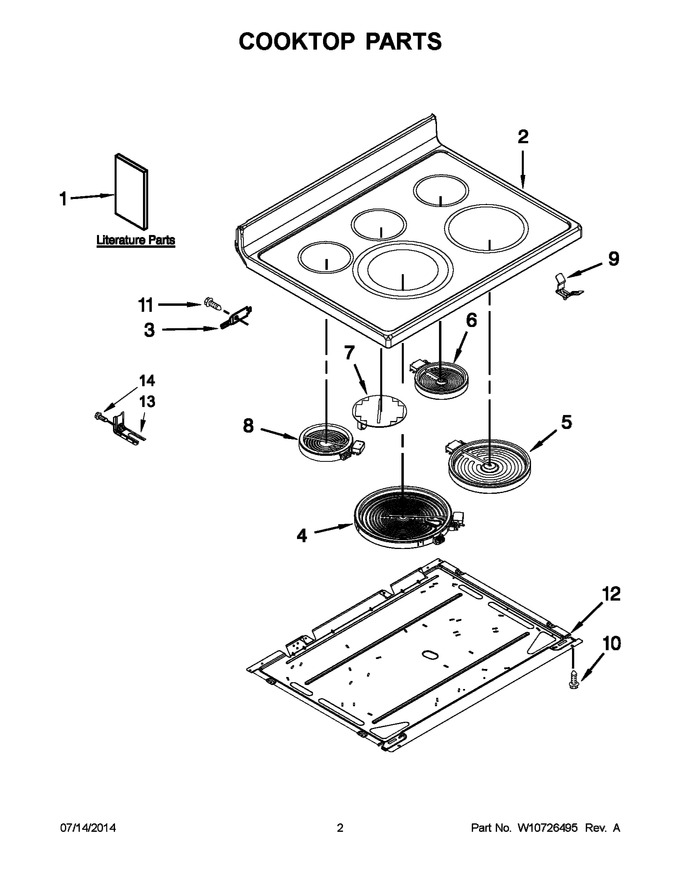

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10392940		Use & Care Guide		Appelez-nous	-
2	W10380677		Cooktop (white)		Appelez-nous	-
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WPW10162041		Element (3000/2200/1100w) (left Front)   (Replaces: W10162041)				$ 385.99
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 341.96
6	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 225.62
7	W11047668		Element, Warm Zone (center)   (Replaces: W10388247)				$ 132.95
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 168.46
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	3196172		Screw			Immediately	$ 13.47
12	W11728329		Pan, Radiant Element   (Replaces: W10106409)			Immediately	$ 143.49
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
14	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1B	W10392961		Tech Sheet, English		Appelez-nous	-
1C	W10403811		Instructions, Installation		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2A	W10380678		Cooktop (black)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11134550		Harness, Cooktop (right)   (Replaces: W10349654)				$ 228.90
NI	W10349734		Harness, Cooktop (left)		Appelez-nous	-
NI	W10629298		Harness, Main		Appelez-nous	-
NI	W11212183		Harness, Sensor   (Replaces: W10349640)				$ 235.64
NI	W11134592		Harness, Warm Zone   (Replaces: W10174460)				$ 117.26
NI	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
