View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

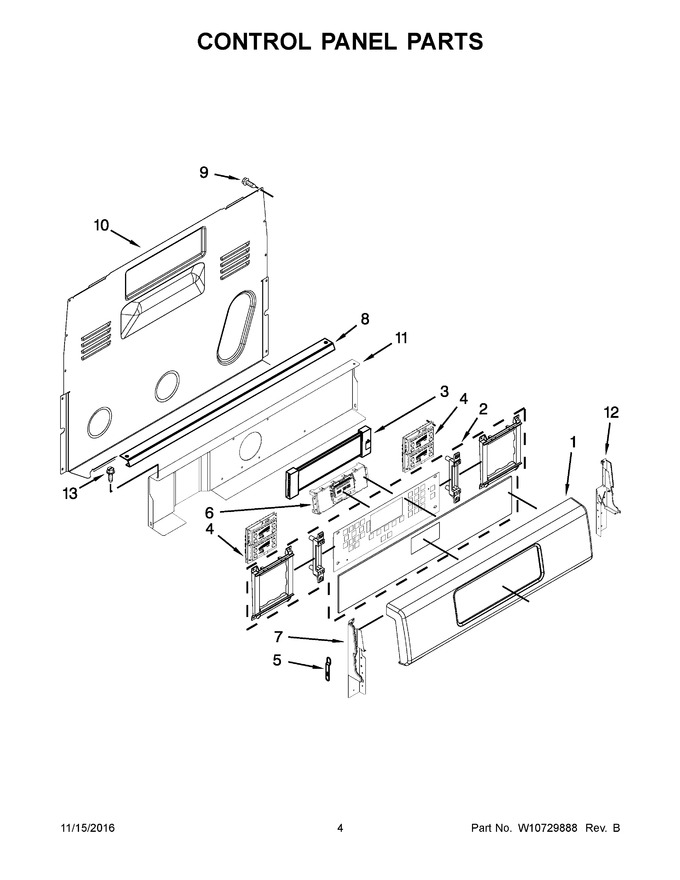

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614437 | Console (stainless) |
|
$ 137.38 | |||||
| 2 | W10726779 | Switch, Membrane |
|
$ 306.02 | |||||
| 3 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 107.95 | |||||
| 4 | WPW10341243 | User Interface (left) (Replaces: W10341243) |
|
Immediately | $ 547.24 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 6 | WPW10686474 | Control, Mrc (Replaces: W10686474) |
|
$ 427.32 | |||||
| 7 | W11404310 | Endcap (black (left)) (Replaces: W10409002) |
|
$ 69.30 | |||||
| 8 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 9 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 12 | W10409003 | Endcap (black (right)) |
|
$ 75.68 | |||||
| 13 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 4A | WPW10553762 | User Interface (right) (Replaces: W10553762) |
|
Immediately | $ 518.26 |
