Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10466836 Blade, Dough   (Replaces: W10466836) Special Order $ 28.15

2 W10721070 Adapter, Shredding Special Order $ 48.90

3 W10721067 Blade, Mini Special Order $ 79.70

4 W10648621 Disc, Shredding Special Order $ 69.58

5 W10721071 Adapter, Common Special Order $ 61.78

6 W10648616 Blade, Multipurpose Special Order $ 61.06

7 W10904922 Disc, Blade & Shaft Assembly Appelez-nous -
8 W10721068 Box, Accessory Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

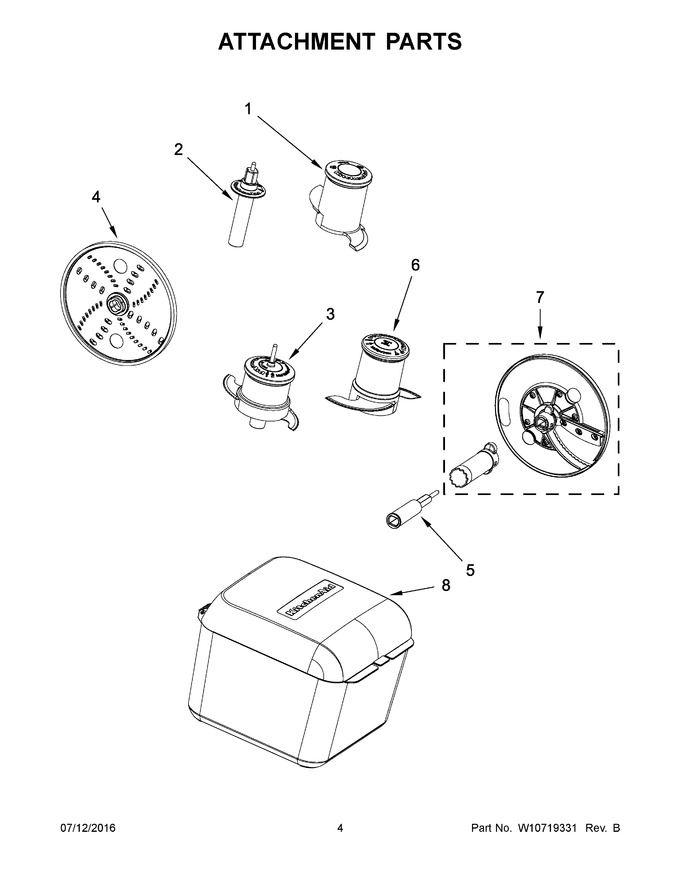

Diagram for KFP1133CU0
