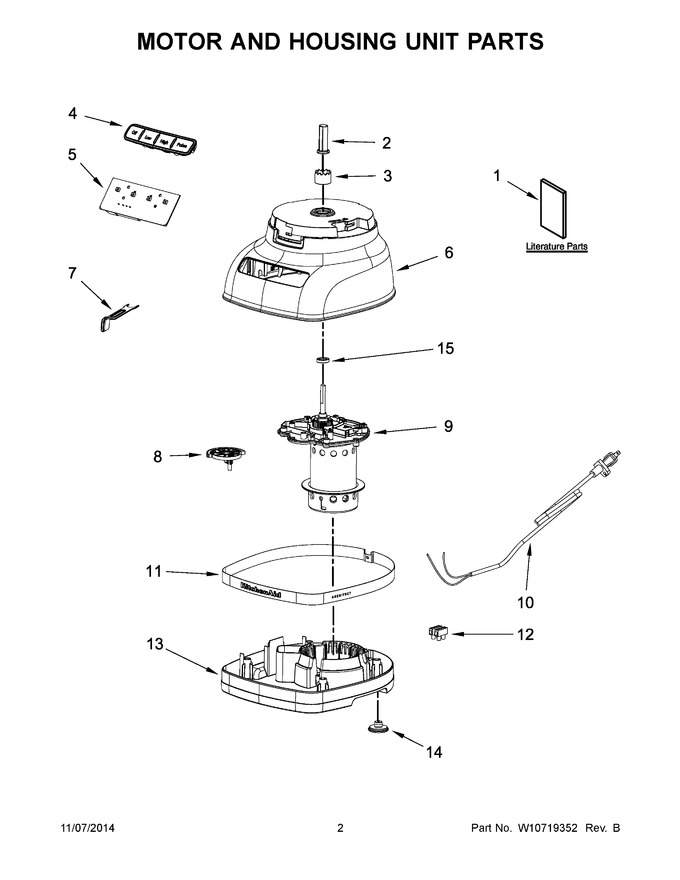

02 - Motor And Housing Unit Parts


03 - Attachment Parts


04 - Bowl And Lid Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10694199		Use And Care Guide		Appelez-nous	-
2	WPW10451326		Adapter, Motor   (Replaces: W10451326)			Immediately	$ 5.94
3	WPW10451327		Support, Bearing   (Replaces: W10451327)				$ 5.54
4	W10723417		User Interface Assembly				$ 66.39
5	W10723418		Pcb Assembly				$ 74.95
6	W10723449		Housing, Upper (white)		Appelez-nous	-
7	W10724212		Button, Adjust		Appelez-nous	-
8	W10724213		Lever, Adjust Control				$ 30.86
9	W10724217		Motor, With Gearbox				$ 130.41
10	W10451329		Cord, Power (2-prong)				$ 32.10
11	W10723404		Band, Trim		Appelez-nous	-
12	W10451322		Block, Terminal		Appelez-nous	-
13	W10723400		Base, Housing		Appelez-nous	-
14	W10451320		Foot				$ 23.27
15	W10723405		Bearing, Ball				$ 34.16
6A	W10723447		Housing, Upper (onyx Black)		Appelez-nous	-
6B	W10723450		Housing, Upper (empire Red)		Appelez-nous	-
6C	W10723453		Housing, Upper (contour Silver)		Appelez-nous	-
6D	W10723454		Housing, Upper (liquid Graphite)		Appelez-nous	-
6E	W10760373		Housing, Upper (slate)		Appelez-nous	-
