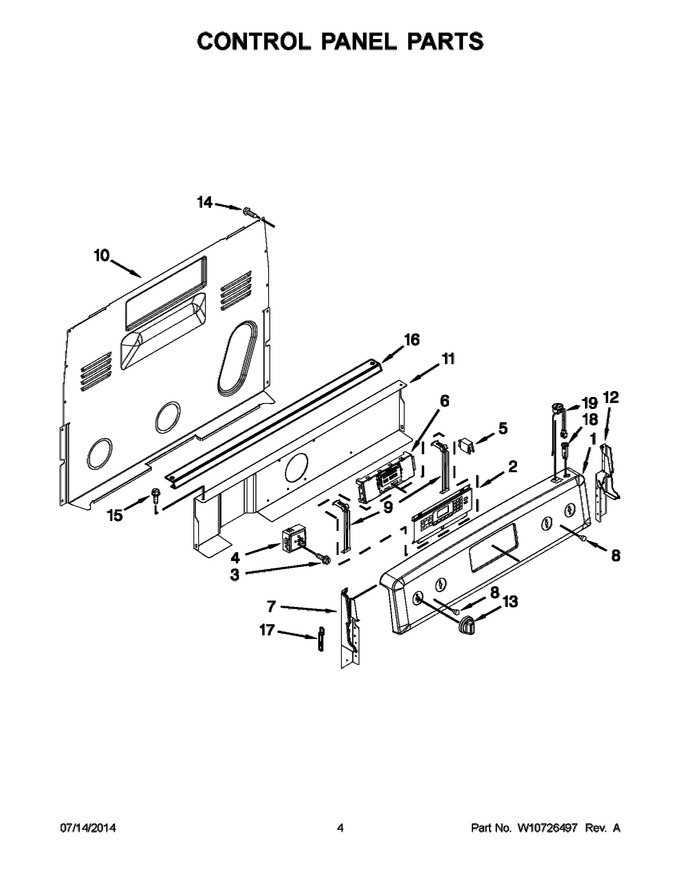

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347955 | Console, Panel (white) |
|
$ 133.42 | |||||
| 2 | W10324427 | Assembly, Active Overlay |
|
$ 319.24 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WPW10340694 | Control, Mrc (Replaces: W10340694) |
|
$ 714.84 | |||||
| 7 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W10318546 | Bracket, Control |
|
- | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 13 | W10524672 | Knob (white) |
|
$ 18.92 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 18 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 19 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 80.79 | ||||
| 12A | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 13A | W10854052 | Knob (stainless) (Replaces: W10324395) |
|
$ 30.14 | |||||
| 18A | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 19A | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 18.47 | ||||
| 1A | W10614434 | Console, Panel (stainless) |
|
$ 245.26 | |||||
| 4A | WPW10434452 | Switch, Infinite (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4B | WPW10411934 | Switch, Infinite (left Rear) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 7A | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 |
