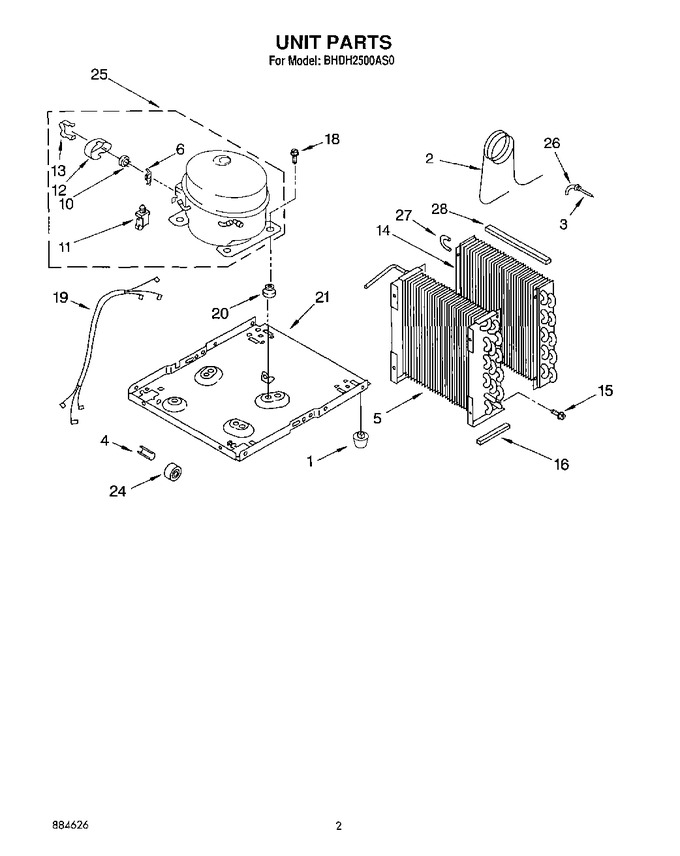

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951886		Glide-natural		Appelez-nous	-
2	1162154		Tube, Restrictor		Appelez-nous	-
3	1162037		Strainer		Appelez-nous	-
4	489015		Roll Pin-2.0 Lg		Appelez-nous	-
5	1162152		Condenser		Appelez-nous	-
6	549086		Spring, Overload (service)		Appelez-nous	-
10	4318051		Overload (service)		Appelez-nous	-
10	1158790		Overload (production)		Appelez-nous	-
11	1158608		Relay (production)		Appelez-nous	-
11	4318052		Relay (service)		Appelez-nous	-
12	549342		Cover, Terminal (service)		Appelez-nous	-
12	1157582		Cover, Terminal (production)		Appelez-nous	-
13	4318053		Retainer, Cover (service)		Appelez-nous	-
13	938384		Retainer, Cover (production)		Appelez-nous	-
14	1162153		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1`` (3)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
24	998726		Roller (2)		Appelez-nous	-
25	1157552		Compressor		Appelez-nous	-
26	855199		Bend, Return		Appelez-nous	-
27	854624		Bend, Return		Appelez-nous	-
28	1162348		Seal, Evaporator Top		Appelez-nous	-
	LIT1162524		Sheet, Tech		Appelez-nous	-
	LIT1157768		Wiring Diagram		Appelez-nous	-
	LIT1162709		Guide, Use And Care		Appelez-nous	-
	LIT884626		List, Repair Parts		Appelez-nous	-
