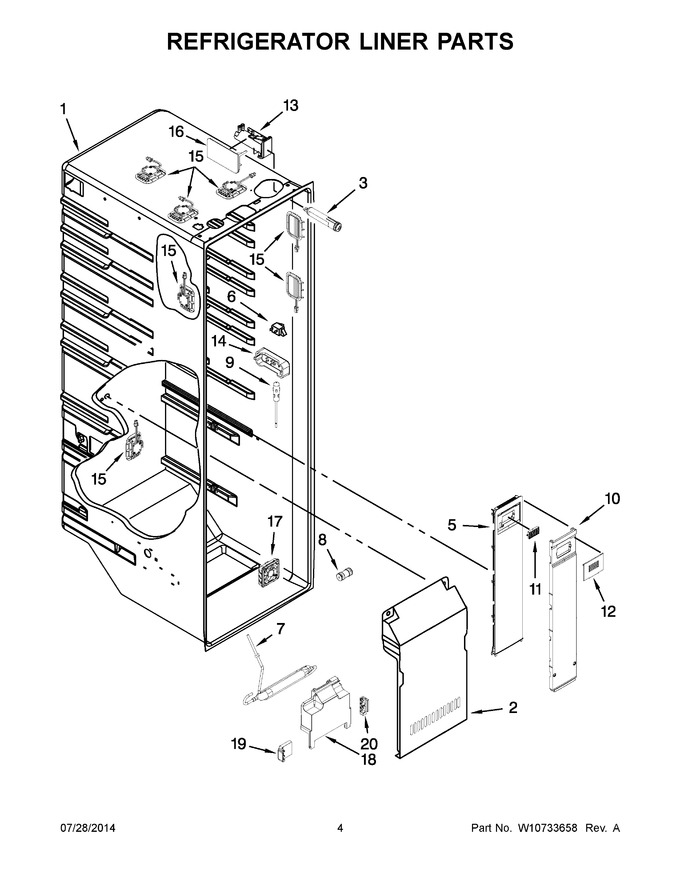

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10859809 | Cover, Evaporator (Replaces: W10251454) |
|
$ 263.42 | |||||
| 3 | W10569758 | Water Filter |
|
$ 0.03 | |||||
| 5 | W10341548 | Cover, Air Tower |
|
$ 80.75 | |||||
| 6 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 39.09 | ||||
| 7 | W11204869 | Reservoir (Replaces: W10504456) |
|
$ 167.67 | |||||
| 8 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 36.99 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10156707 | Tower, Air |
|
$ 95.50 | |||||
| 11 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 12 | W10341548 | Cover, Air Tower |
|
$ 80.75 | |||||
| 13 | WPW10394053 | Housing, Water Filter (Replaces: W10394053) |
|
Immediately | $ 157.61 | ||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 15 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 16 | W11501035 | Cover, Water Filter (Replaces: W10300482) |
|
$ 15.70 | |||||
| 17 | WPW10439624 | Fan Assembly, Evaporator (Replaces: W10439624) |
|
Immediately | $ 338.17 | ||||
| 18 | WPW10453428 | Evaporator Insulation (with Fan Assembly) (Replaces: W10453428) |
|
$ 276.56 | |||||
| 19 | W11028224 | Support, Evap Lh (Replaces: W10223366) |
|
$ 11.98 | |||||
| 20 | W10837626 | Support, Evap Rh (Replaces: W10223364) |
|
$ 75.86 |
