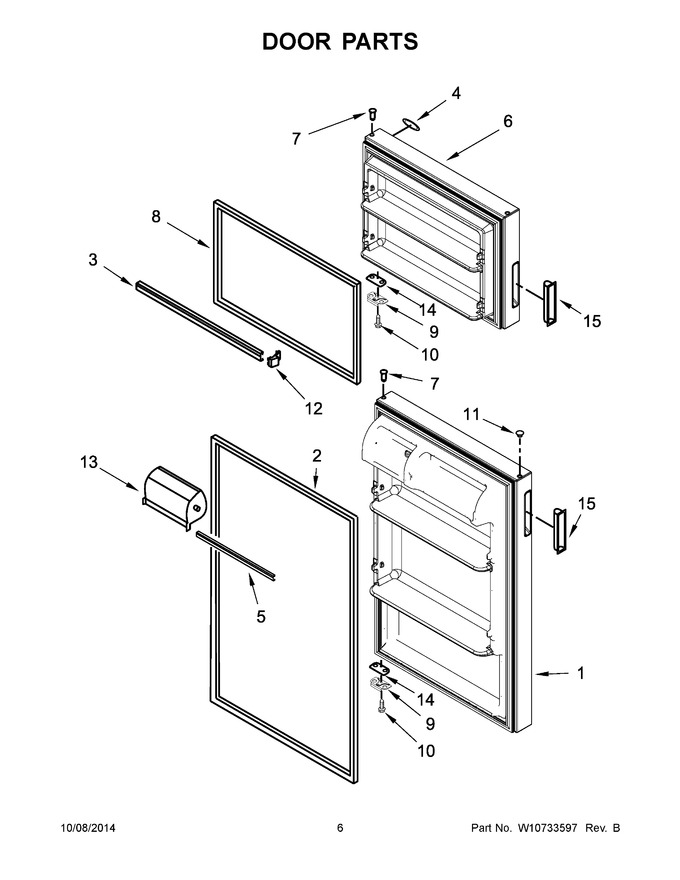

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10570557 | Refrigerator Door (includes Illus. 2 & Door Handle) (white) (Replaces: W10570557) |
|
$ 697.75 | |||||
| 2 | WP2319265T | Door Gasket, Magnetic (white) (Replaces: 2264728) |
|
Immediately | $ 233.76 | ||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 4 | 2204652 | Nameplate |
|
- | |||||
| 5 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 6 | LW10573399 | Freezer Door (includes Illus. 8 & Door Handle) (white) (Replaces: W10573399) |
|
$ 685.22 | |||||
| 7 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 8 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 265.20 | ||||
| 9 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 10 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 11 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 73.21 | ||||
| 14 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 15 | W10182940 | Handle, Cup (white) |
|
$ 72.41 |
