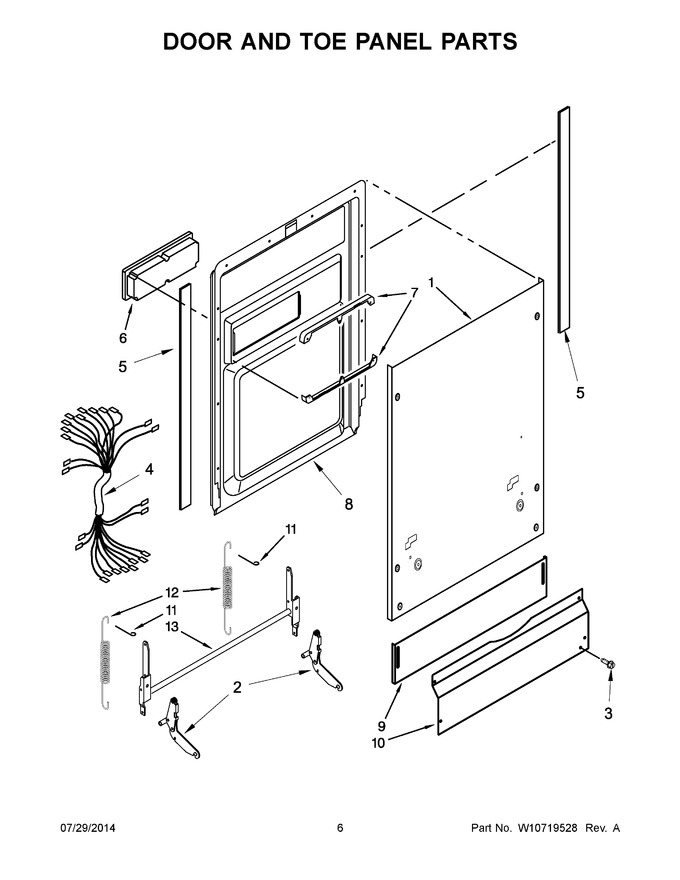

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10717685		Panel, Outer Door		Appelez-nous	-
2	W10567695		Hinge, Door (left Hand)				$ 208.35
3	W10517911		Screw (white)		Appelez-nous	-
4	W10717644		Wiring Harness		Appelez-nous	-
5	W10717686		Guard, Inner Door (white)		Appelez-nous	-
6	W10717646		Dispenser				$ 205.61
7	W10567606		Bracket, Dispenser		Appelez-nous	-
8	W10717689		Door, Inner				$ 194.26
9	W10567712		Panel, Toe (white)		Appelez-nous	-
10	WPW10567714		Panel, Access (white)   (Replaces: W10567714)				$ 123.30
11	W10567596		Pin, Door Spring				$ 15.25
12	W10567691		Spring, Door				$ 32.38
13	W10567692		Hinge, Bracket		Appelez-nous	-
2A	W10567694		Hinge, Door (right Hand)				$ 208.42
