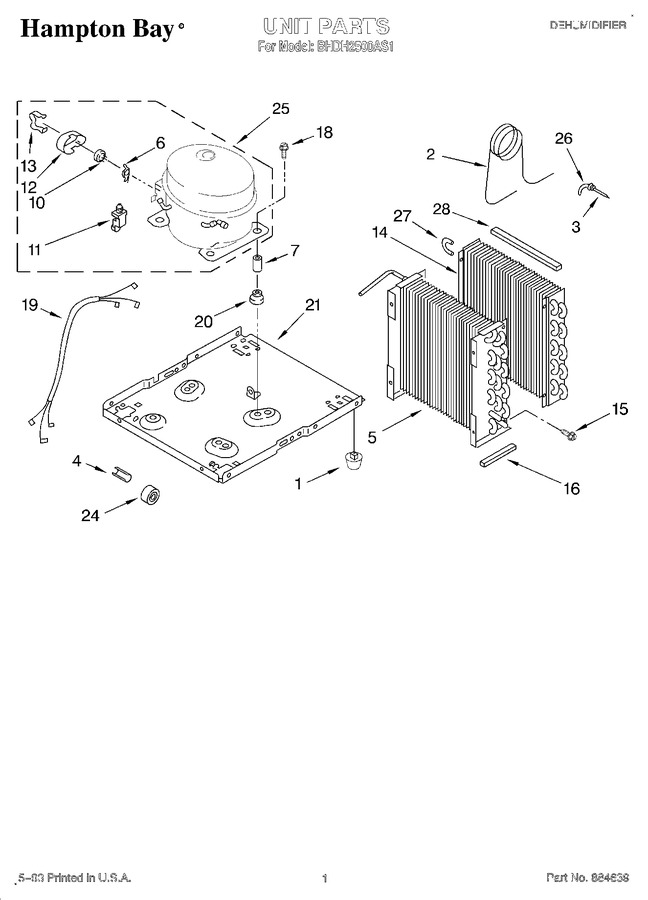

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951886		Glide-natural		Appelez-nous	-
2	1164204		Tube, Restrictor		Appelez-nous	-
3	1162037		Strainer		Appelez-nous	-
4	489015		Roll Pin-2.0 Lg		Appelez-nous	-
5	1164219		Condenser		Appelez-nous	-
6	950061		Spring, Overload (service)		Appelez-nous	-
7	646498		Sleeve		Appelez-nous	-
10	4387535		Overload (service)   (Replaces: 2154760)				$ 191.05
10	1163837		Overload (production)		Appelez-nous	-
11	1163838		Relay (production)		Appelez-nous	-
11	WP2262181		Relay (service)   (Replaces: 1108143)				$ 128.78
12	950055		Cover, Terminal (production)		Appelez-nous	-
12	1108115		Cover, Terminal (service)		Appelez-nous	-
13	950056		Retainer, Cover (production)		Appelez-nous	-
13	938384		Retainer, Cover (service)		Appelez-nous	-
14	1161199		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
18	1163835		1/4-28 X 1`` (4)		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
24	998726		Roller (2)		Appelez-nous	-
25	1163836		Compressor		Appelez-nous	-
26	855199		Bend, Return		Appelez-nous	-
27	854624		Bend, Return		Appelez-nous	-
28	1162348		Seal Evaporator To		Appelez-nous	-
	LIT884639		List, Repair Parts		Appelez-nous	-
	LIT1164210		Sheet, Tech		Appelez-nous	-
	LIT1164212		Wiring Diagram		Appelez-nous	-
	LIT1162709		Guide, Use And Care		Appelez-nous	-
