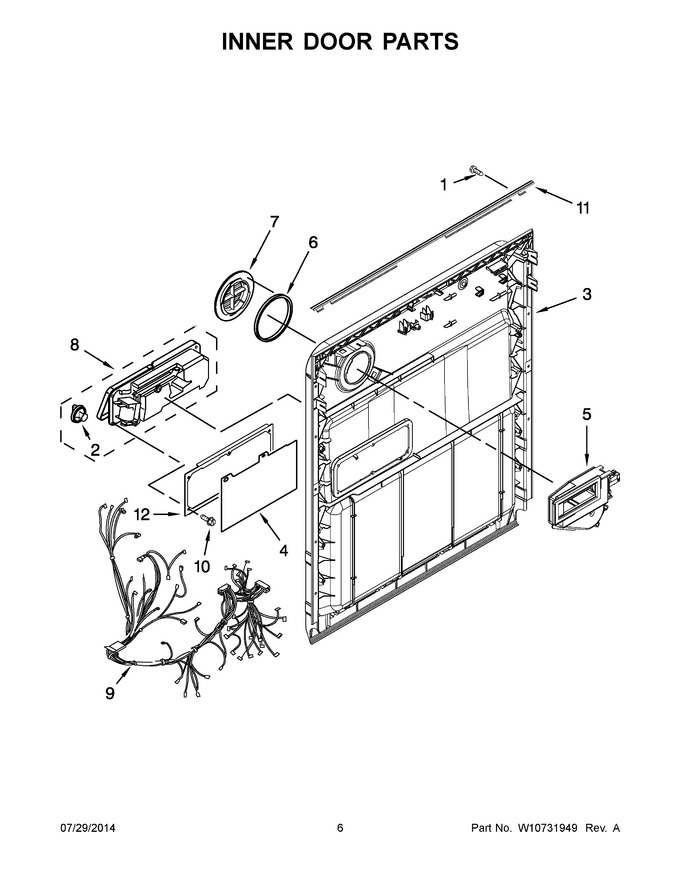

04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
2	WPW10524920		Cap, Rinse Aid   (Replaces: W10524920)			Immediately	$ 24.75
3	W11513971		Inner Door Assembly (also Order Item 6)   (Replaces: W10713291)			Immediately	$ 269.76
4	WPW10482094		Cover, Dispenser   (Replaces: W10482094)			Immediately	$ 32.36
5	WPW10329609		Vent Assembly (also Order Item 6)   (Replaces: W10329609)			Immediately	$ 86.34
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	W11227945		Bezel, Vent (also Order Item 6)   (Replaces: W10671924)			Immediately	$ 70.37
8	W11819720		Dispenser Assembly   (Replaces: W10671905)			Immediately	$ 127.84
9	W10566921		Wiring Harness			Immediately	$ 177.82
10	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
11	W10837566		Seal, Console/door   (Replaces: W10274923)			Immediately	$ 86.84
12	WPW10462232		Bracket, Dispenser   (Replaces: W10462232)				$ 37.79
