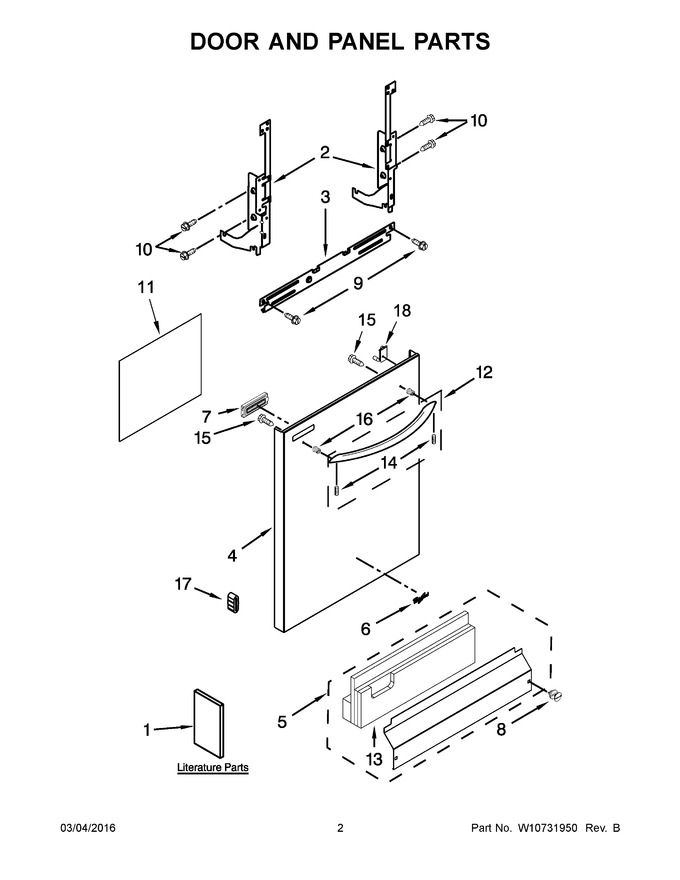

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10788856 | Installation Instructions |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left Hand) (Replaces: W10274922) |
|
Immediately | $ 71.77 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10195120) |
|
Immediately | $ 32.88 | ||||
| 4 | W10814587 | Panel, Front (includes 6, 7, 15, 16 & 18) (black) (Replaces: W10644290) |
|
$ 384.20 | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10526114) |
|
Immediately | $ 149.53 | ||||
| 6 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 7 | W10620288 | Vent (black) |
|
- | |||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 12 | W10873050 | Handle Assembly (black) (Replaces: W10813554) |
|
$ 177.23 | |||||
| 13 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 14 | W10907991 | Screw, Set (Replaces: W10693137) |
|
$ 7.55 | |||||
| 15 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 16 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 17 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 18 | W10500331 | Light, Pipe |
|
$ 33.41 | |||||
| 12A | W10873052 | Handle Assembly (white) (Replaces: W10813555) |
|
$ 171.23 | |||||
| 12B | W11028176 | Handle Assembly (stainless) (Replaces: W10813556) |
|
$ 118.35 | |||||
| 1A | W10808749 | Energy Guide |
|
- | |||||
| 1B | W10656407 | Use & Care Guide |
|
- | |||||
| 1C | W10610059 | Tech Sheet, English |
|
- | |||||
| 1D | W10610060 | Tech Sheet, French |
|
- | |||||
| 2A | W11613572 | Arm, Hinge (right Hand) (Replaces: W10274921) |
|
Immediately | $ 83.93 | ||||
| 4A | W10644291 | Panel, Front (includes 6, 7, 15, 16 & 18) (white) |
|
- | |||||
| 4B | WPW10644292 | Panel, Front (includes 6, 7, 15, 16 & 18) (stainless) (Replaces: W10644292) |
|
$ 399.57 | |||||
| 5A | WPW10526115 | Access Panel (white) (Replaces: W10526115) |
|
$ 175.17 | |||||
| 6A | W11178521 | Nameplate (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 7A | W10620289 | Vent (white) |
|
$ 36.72 | |||||
| 7B | W10620291 | Vent (silver) |
|
$ 30.60 | |||||
| 8A | WPW10503549 | Fastener (white) (Replaces: W10503549) |
|
Immediately | $ 7.77 |
