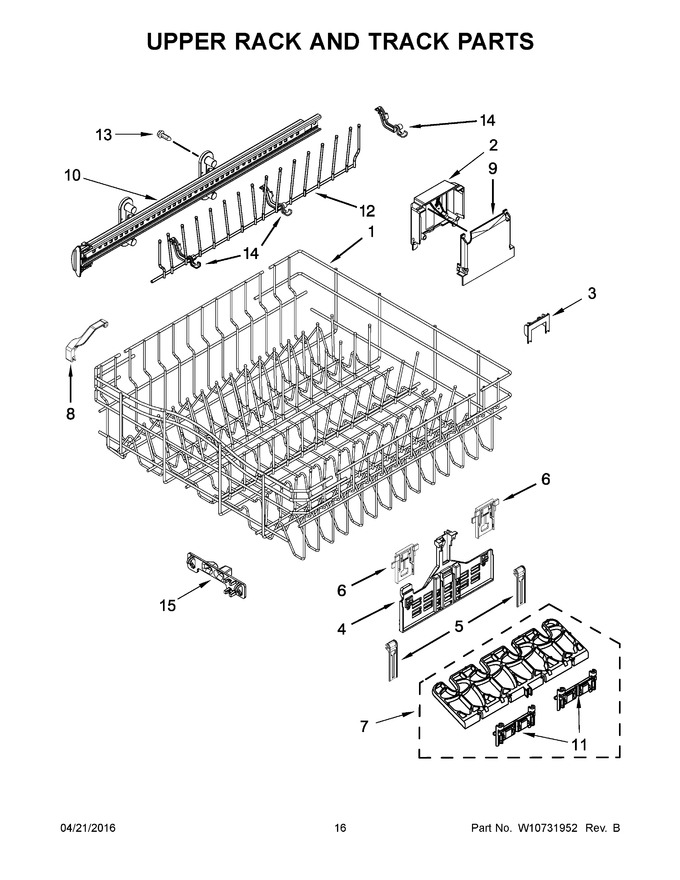

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: W10350380)			Immediately	$ 179.58
2	W11162099		Housing, Adjuster (also Order Adjuster Assembly) (left Hand)   (Replaces: W10656415)			Immediately	$ 89.29
3	WPW10250160		Clip, Adjuster   (Replaces: W10250160)			Immediately	$ 40.55
4	W10837306		Adjuster Assembly (left Hand)   (Replaces: W10629521)			Immediately	$ 65.70
5	WPW10195839		Strap, Tether Adjuster   (Replaces: W10195839)			Immediately	$ 30.81
6	WPW10195840		Positioner, Adjuster   (Replaces: W10195840)			Immediately	$ 51.32
7	WPW10082649		Cupshelf Assembly   (Replaces: W10082649)			Immediately	$ 109.45
8	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56
9	WPW10250162		Cover, Adjuster   (Replaces: W10462366)			Immediately	$ 7.61
10	W10460371		Track, Dishrack				$ 64.25
11	WPW10082848		Clip, Cupshelf   (Replaces: W10082848)			Immediately	$ 8.27
12	W10727426		Tine Row, Fold Down   (Replaces: 8562030)			Immediately	$ 85.10
13	WPW10309090		Screw   (Replaces: W10309090)			Immediately	$ 76.86
14	WPW10082853		Clip, Pivot   (Replaces: W10082853)			Immediately	$ 5.40
15	W10803790		Positioner, Dual   (Replaces: W10671900)				$ 89.66
2A	W11197024		Housing, Adjuster (also Order Adjuster Assembly) (right Hand)   (Replaces: W10656414)				$ 90.85
4A	W10838949		Adjuster Assembly (right Hand)   (Replaces: W10629520)			Immediately	$ 64.55

    View Diagram in Separate Window       Print Part List
