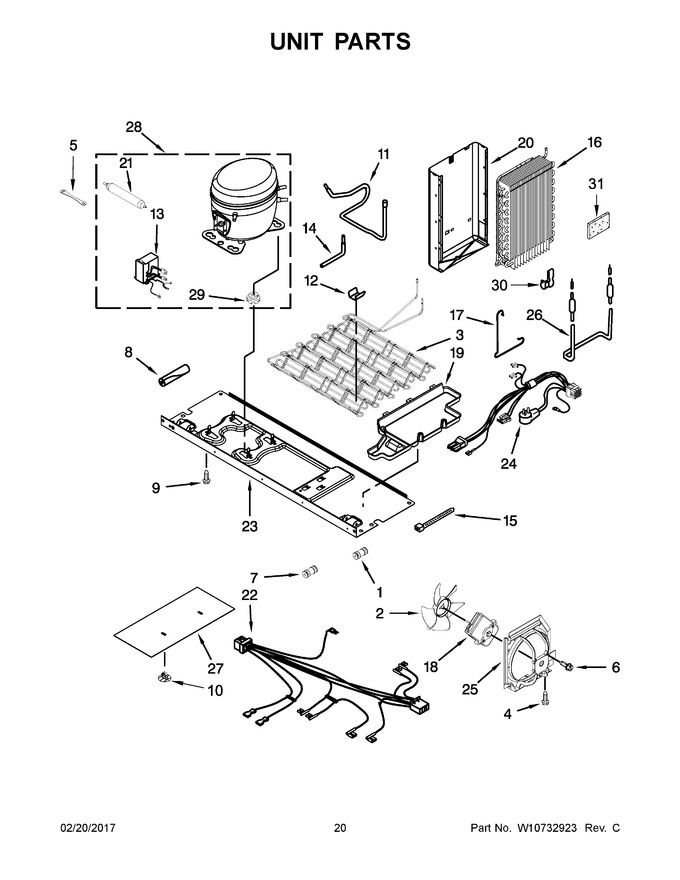

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11760073 | Condenser (Replaces: W10276899) |
|
$ 168.80 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 11 | W11311688 | Tube, Suction (Replaces: W10219381) |
|
$ 88.67 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | W10893917 | Assembly, Inverter Box (Replaces: W10186719) |
|
$ 470.79 | |||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 113.96 | ||||
| 19 | W10703218 | Tray, Evaporator |
|
$ 202.29 | |||||
| 20 | W10274575 | Shield, Heat |
|
$ 101.51 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| 22 | W11700341 | Assembly, Unit Wire (Replaces: W10679948) |
|
$ 102.07 | |||||
| 23 | W10277704 | Basepan |
|
$ 169.00 | |||||
| 24 | WPW10242407 | Cord, Power (Replaces: W10242407) |
|
$ 80.97 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | WPW10495967 | Heater, Defrost (Replaces: W10495967) |
|
Immediately | $ 167.33 | ||||
| 27 | W10278140 | Cover, Condenser (bottom) |
|
$ 94.05 | |||||
| 28 | W10313831 | Compressor |
|
- | |||||
| 29 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 30 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 31 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.3 Oz. (r-134a) |
|
- |
