01 - Cover Sheet

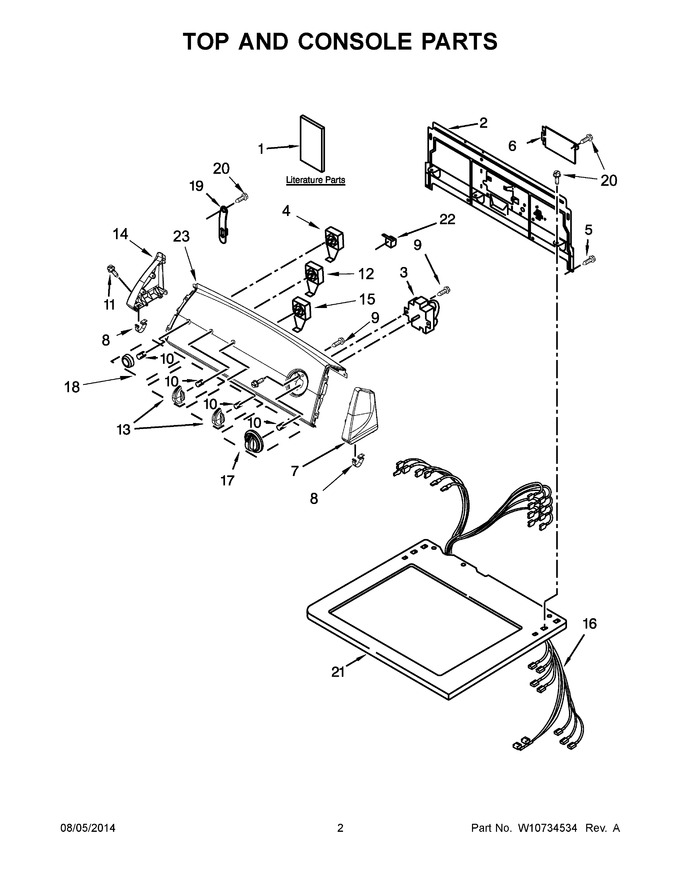

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10660262		Wiring Diagram		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 150.34
4	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
5	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
6	W10601020		Cover, Terminal Block		Appelez-nous	-
7	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
10	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
11	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
12	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 152.79
13	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
14	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
15	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
16	W10640695		Harness, Main		Appelez-nous	-
17	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
18	WPW10034790		Assembly, Push-to-start Knob (white/metallic)   (Replaces: W10034790)				$ 57.81
19	WP8568314		Strap, Console   (Replaces: 8568314)				$ 8.17
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
21	8559781		Top (white)		Appelez-nous	-
22	3952439		Buzzer, Mini		Appelez-nous	-
23	W10598019		Console (white)		Appelez-nous	-
1A	W10629452		Owners Manual		Appelez-nous	-
1B	W10629448		Installation Instructions		Appelez-nous	-
23A	W10598017		Console (metallic)		Appelez-nous	-
