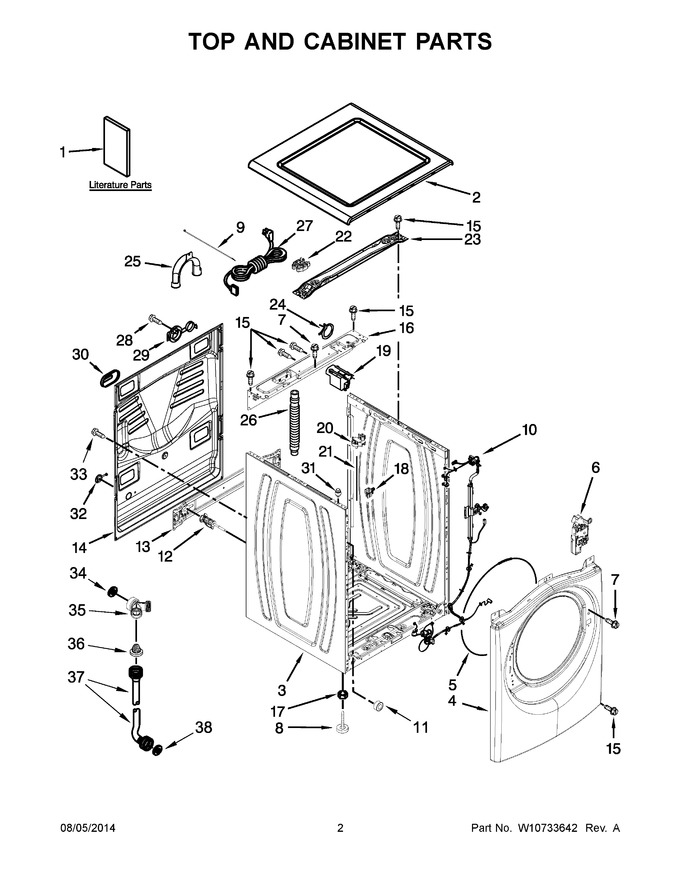

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10709304 | Installation Instructions |
|
- | |||||
| 2 | WPW10208373 | Top (white) (Replaces: W10208373) |
|
$ 320.46 | |||||
| 3 | W11166595 | Cabinet (white) (Replaces: W10441110) |
|
$ 459.54 | |||||
| 4 | WPW10441116 | Panel, Front (white) (Replaces: W10441116) |
|
$ 360.63 | |||||
| 5 | W11266654 | Retainer, Bellow (to Front Panel) (Replaces: W10237503) |
|
Immediately | $ 26.94 | ||||
| 6 | WPW10443885 | Lock, Door (Replaces: W10443885) |
|
Immediately | $ 143.13 | ||||
| 7 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 11.56 | |||||
| 8 | WPW10001130 | Foot, Front (Replaces: W10001130) |
|
Immediately | $ 7.80 | ||||
| 9 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 10 | W10746377 | Harness, Wiring (lower Main) (Replaces: W10572206) |
|
$ 162.31 | |||||
| 11 | W10323182 | Spacer, Front Panel (Replaces: W10615477) |
|
- | |||||
| 12 | W10763470 | Bolt, Shipping Upper (Replaces: W10538715) |
|
$ 40.12 | |||||
| 13 | W10237498 | Brace, Transport |
|
$ 72.85 | |||||
| 14 | W10568353 | Panel, Rear |
|
- | |||||
| 15 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 16 | WPW10467483 | Brace, Rear (Replaces: W10467483) |
|
$ 37.78 | |||||
| 17 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 18 | WPW10181028 | Clip, Pressure Switch Hose (Replaces: W10181028) |
|
$ 18.66 | |||||
| 19 | WPW10367632 | Filter, Interference (Replaces: W10367632) |
|
$ 122.22 | |||||
| 20 | WPW10448876 | Sensor, Pressure (Replaces: W10448876) |
|
Immediately | $ 66.79 | ||||
| 21 | W11044558 | Hose, Pressure Switch (Replaces: W10575417) |
|
Immediately | $ 32.72 | ||||
| 22 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
- | |||||
| 23 | W10467484 | Brace, Top |
|
$ 42.84 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 25 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 26 | W11281268 | Hose, Drain (external) (Replaces: W10267638) |
|
Immediately | $ 18.26 | ||||
| 27 | W11035353 | Power Cord (Replaces: W10434975) |
|
Immediately | $ 124.81 | ||||
| 28 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 29 | W10854051 | Cover, Power Cord- Transport (Replaces: W10275820) |
|
$ 21.43 | |||||
| 30 | WP8540268 | Cover, Transport (Replaces: 8182700) |
|
$ 6.95 | |||||
| 31 | W10208380 | Screw And Bushing Assembly |
|
$ 69.03 | |||||
| 32 | W10304004 | Cover, Power Cord |
|
- | |||||
| 33 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.02 | |||||
| 34 | WP3357450 | Washer, Hose Adapter (Replaces: 3357450) |
|
$ 11.01 | |||||
| 35 | WPW10269488 | Connector, Hose -"y (Replaces: W10269488) |
|
$ 85.37 | |||||
| 36 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.23 | ||||
| 37 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 38 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 7.70 | |||||
| 12A | W10763470 | Bolt, Shipping Lower (Replaces: W10538711) |
|
$ 40.12 | |||||
| 1A | W10709314 | Owners Manual |
|
- | |||||
| 1B | W10602465 | Tech Sheet |
|
- | |||||
| 1C | W10727219 | Energy Guide |
|
- | |||||
| 37A | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194211) |
|
Immediately | $ 24.09 |
