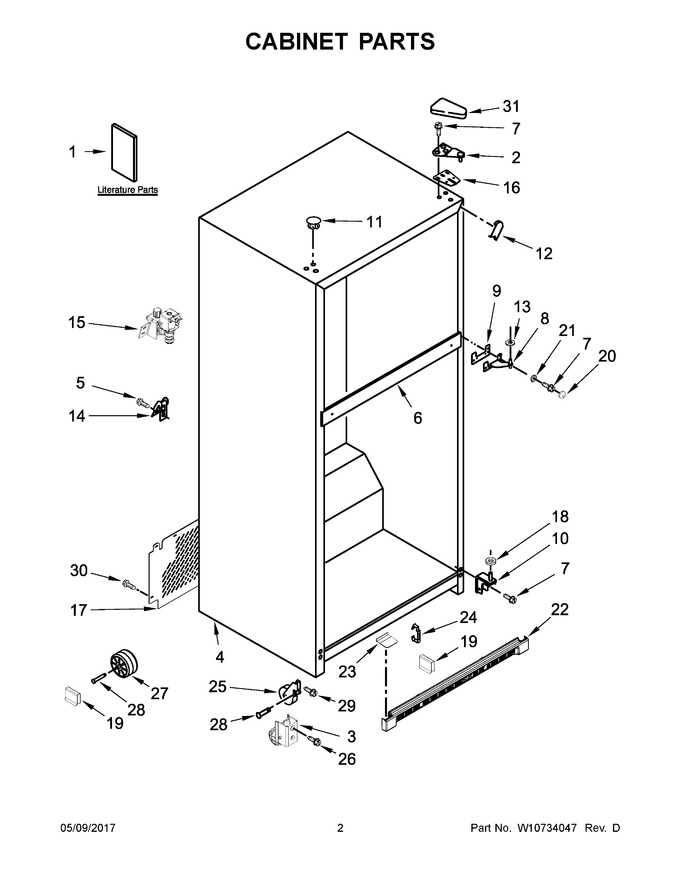

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10674984 | Service & Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10725960) |
|
$ 114.75 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 10 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 11 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 19.22 | ||||
| 12 | WPW10283959 | Filler, Wrapper (white) (Replaces: W10283959) |
|
$ 8.21 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 15 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 189.89 | |||||
| 16 | W11169703 | Shim, Top Hinge (white) (Replaces: 2221885) |
|
$ 15.79 | |||||
| 17 | W11307290 | Cover, Unit (Replaces: W10609390) |
|
- | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 20 | W10846529 | Dome Cap (white) (Replaces: W10674771) |
|
Immediately | $ 19.82 | ||||
| 21 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 11.27 | |||||
| 22 | W10839426 | Grille (white) (Replaces: W10592141) |
|
$ 83.07 | |||||
| 23 | W10600071 | Cover, Toe Grille (white) |
|
$ 102.01 | |||||
| 24 | 2254385 | Clip, Grille |
|
$ 88.87 | |||||
| 25 | WP2166108 | Assembly, Roller (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 26 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 27 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 28 | W11594405 | Axle, Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 29 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 30 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 31 | WP2213360 | Cover, Top Hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 11A | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 19.18 | |||||
| 11B | WPW10520306 | Hole Plug (biscuit) (Replaces: W10520306) |
|
$ 15.38 | |||||
| 11C | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 12A | W11252732 | Filler, Wrapper (black) (Replaces: W10283960) |
|
$ 13.07 | |||||
| 12B | W10283958 | Filler, Wrapper (biscuit/bisque) |
|
$ 25.63 | |||||
| 12C | W10851579 | Filler, Wrapper (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 1A | W10674106 | Use & Care Guide |
|
- | |||||
| 1B | W10908015 | Energy Label |
|
- | |||||
| 20A | W10853677 | Dome Cap (black) (Replaces: W10679135) |
|
$ 19.89 | |||||
| 20B | W10679138 | Dome Cap (biscuit) |
|
- | |||||
| 20C | W10849198 | Dome Cap (grey) (Replaces: W10679139) |
|
$ 19.22 | |||||
| 22A | W10860799 | Grille (black) (Replaces: W10592142) |
|
$ 87.10 | |||||
| 22B | W10592143 | Grille (biscuit/bisque) |
|
- | |||||
| 22C | W10860791 | Grille (grey) (Replaces: W10592144) |
|
$ 84.36 | |||||
| 23A | W10468609 | Cover, Toe Grille (black) |
|
$ 102.06 | |||||
| 23B | W10468610 | Cover, Toe Grille (biscuit/bisque) |
|
- | |||||
| 23C | W10468611 | Cover, Toe Grille (grey) |
|
Immediately | $ 102.06 | ||||
| 31A | WP2213363 | Cover, Top Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 31B | 2213364 | Cover, Top Hinge (biscuit) |
|
$ 18.69 | |||||
| 31C | W10853622 | Cover, Top Hinge (grey) (Replaces: 2254510) |
|
Immediately | $ 82.46 |
