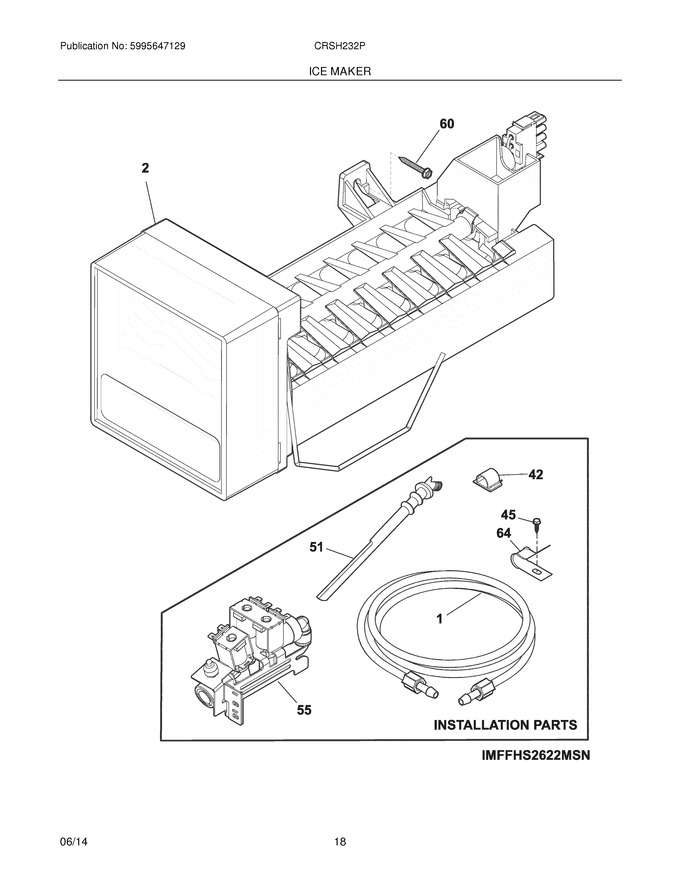

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube,water ,60`` ,natural ,door |
|
Immediately | $ 66.94 | ||||
| 42 | 218515403 | Clip-grille |
|
$ 32.29 | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 51 | 241796405 | Tube-water Fill,extension |
|
$ 20.48 | |||||
| 60 | 5304455852 | Screw,hex Washer Head ,8-15a X 1.000 ,(2) (Replaces: 5303207328) |
|
$ 14.18 | |||||
| 64 | 5304455846 | Clamp,0.31 Id ,steel ,copper Wtr Line (Replaces: 5303001549) |
|
$ 11.81 | |||||
| F2 | 241798231 | Ice Maker,radius Cube ,service ,115 V ,complete (Replaces: 241798201) |
|
Immediately | $ 223.30 | ||||
| F55 | 242252702 | Valve,solenoid ,triple |
|
Immediately | $ 147.46 | ||||
| NI | 218709101 | Screw,hex Head ,10-32 X 0.500 |
|
$ 7.09 | |||||
| NI | 240542901 | Cap-water Valve |
|
$ 21.06 | |||||
| NI | 242220206 | Tube-water Inlet,.315 - 97.50`` ,brown/tan |
|
$ 51.98 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 22.84 | ||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NI | 218976439 | Tube-water Inlet,5/16 - 32`` ,yellow ,valve To Door |
|
$ 21.26 | |||||
| NI | 240363602 | Screw-shoulder |
|
$ 15.17 |
