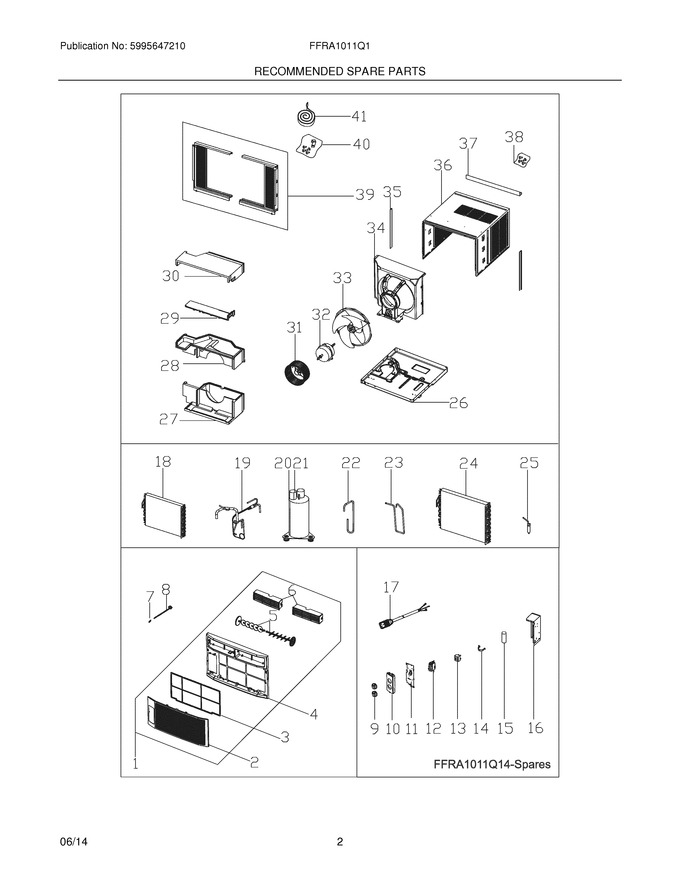

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304491983 | · Panel,grille ,front |
|
- | |||||
| 4 | 5304491984 | · Frame,front Assembly |
|
- | |||||
| 9 | 5304487522 | Knob Assembly,control ,w/spring |
|
- | |||||
| 11 | 5304492003 | Cover,control Box |
|
- | |||||
| 14 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 16 | 5304492004 | Control Box |
|
- | |||||
| 26 | 5304495101 | Base,unit Chassis |
|
- | |||||
| 27 | 5304485967 | Scroll,blower Housing ,bottom |
|
- | |||||
| 28 | 5304495102 | Scroll,blower Housing ,middle |
|
- | |||||
| 29 | 5304495103 | Enclosure,air Duct |
|
- | |||||
| 30 | 5304485969 | Scroll,blower Housing ,top |
|
- | |||||
| 34 | 5304495104 | Shroud,condenser/fan |
|
- | |||||
| 35 | 5304476197 | Retainer,shutter ,cabinet Sides |
|
$ 9.87 | |||||
| 36 | 5304476198 | Cabinet,wrapper/sleeve |
|
- | |||||
| 37 | 5304476199 | Rail,shutter Track ,top Angle |
|
- | |||||
| 38 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 39 | 5304476200 | Window Filler Kit,slider Panels ,accordion |
|
$ 111.99 | |||||
| 40 | 5304491953 | Hardware,mounting ,screws/locks |
|
$ 19.52 | |||||
| 41 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F1 | 5304496249 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304492002 | Control Panel,with Overlay |
|
- | |||||
| F12 | 5304476765 | Sensor Assembly,temperature |
|
$ 91.72 | |||||
| F13 | 5304476766 | Switch,master ,rotary |
|
- | |||||
| F15 | 5304471300 | Capacitor |
|
- | |||||
| F17 | 5304476180 | Power Cord,electric ,lcdi |
|
$ 211.10 | |||||
| F18 | 5304495096 | Evaporator,+capillary Tube |
|
- | |||||
| F19 | 5304495097 | · Tube,capillary |
|
- | |||||
| F20 | 5304476613 | Compressor,with Overload |
|
$ 464.26 | |||||
| F21 | 5304495098 | · Overload Protector,compressor |
|
- | |||||
| F22 | 5304495099 | Tube,suction |
|
- | |||||
| F23 | 5304495100 | Tube,discharge |
|
- | |||||
| F24 | 5304491952 | Condenser |
|
- | |||||
| F25 | 5304476201 | Filter-drier |
|
$ 38.98 | |||||
| F3 | 5304482739 | · Filter,air |
|
- | |||||
| F31 | 5304485443 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F32 | 5304493236 | Motor,fan |
|
- | |||||
| F33 | 5304504802 | Fan Blade,axial (Replaces: 5304476059) |
|
- | |||||
| F5 | 5304491985 | · Louver,vertical |
|
- | |||||
| F6 | 5304491986 | · Louver,horizontal |
|
- | |||||
| F7 | 5304520877 | Sleeve,vent Door Assy ,guide (Replaces: 5304476179) |
|
- | |||||
| F8 | 5304476178 | Door,vent Control ,with Lever |
|
- |
