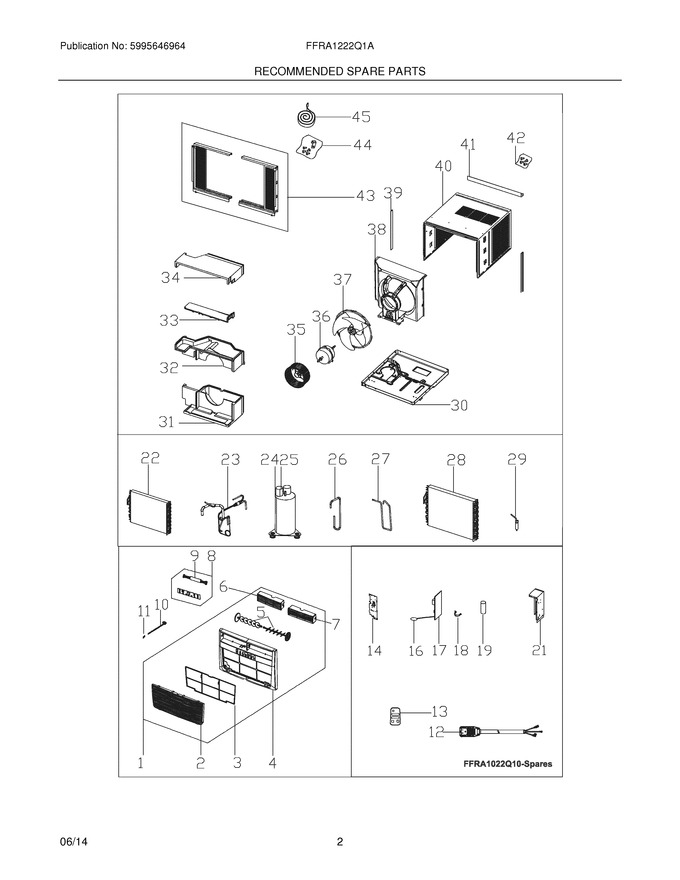

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304476793 | · Panel,front Grille ,tilt-out |
|
$ 33.08 | |||||
| 4 | 5304476795 | · Frame,front Assembly |
|
- | |||||
| 14 | 5304476182 | Cover,control Box |
|
- | |||||
| 18 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 21 | 5304492004 | Control Box |
|
- | |||||
| 30 | 5304495101 | Base,unit Chassis |
|
- | |||||
| 31 | 5304485967 | Scroll,blower Housing ,bottom |
|
- | |||||
| 32 | 5304495102 | Scroll,blower Housing ,middle |
|
- | |||||
| 33 | 5304495103 | Enclosure,air Duct |
|
- | |||||
| 34 | 5304485969 | Scroll,blower Housing ,top |
|
- | |||||
| 38 | 5304495104 | Shroud,condenser/fan |
|
- | |||||
| 39 | 5304476197 | Retainer,shutter ,cabinet Sides |
|
$ 9.87 | |||||
| 40 | 5304476198 | Cabinet,wrapper/sleeve |
|
- | |||||
| 41 | 5304476199 | Rail,shutter Track ,top Angle |
|
- | |||||
| 42 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 43 | 5304476200 | Window Filler Kit,slider Panels ,accordion |
|
$ 111.99 | |||||
| 44 | 5304491953 | Hardware,mounting ,screws/locks |
|
$ 19.52 | |||||
| 45 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F1 | 5304476792 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304476178 | Door,vent Control ,with Lever |
|
- | |||||
| F11 | 5304520877 | Sleeve,vent Door Assy ,guide (Replaces: 5304476179) |
|
- | |||||
| F12 | 5304476180 | Power Cord,electric ,lcdi |
|
$ 211.10 | |||||
| F13 | 5304476802 | Remote Control,transmitter |
|
$ 115.67 | |||||
| F16 | 5304504724 | Sensor,ambient Temp ,thermistor (Replaces: 5304487548) |
|
$ 19.85 | |||||
| F17 | 5304496237 | Pc Board,main ,control/power |
|
- | |||||
| F19 | 5304476066 | Capacitor |
|
$ 157.35 | |||||
| F22 | 5304495112 | Evaporator,+capillary Tube |
|
- | |||||
| F23 | 5304495113 | · Tube,capillary |
|
- | |||||
| F24 | 5304476069 | Compressor,with Overload |
|
- | |||||
| F25 | 5304476296 | · Overload Protector,compressor |
|
- | |||||
| F26 | 5304495123 | Tube,suction |
|
- | |||||
| F27 | 5304495124 | Tube,discharge |
|
- | |||||
| F28 | 5304476838 | Condenser |
|
- | |||||
| F29 | 5304476201 | Filter-drier |
|
$ 38.98 | |||||
| F3 | 5304535830 | · Filter,air ,plastic Frame (Replaces: 5304476794) |
|
$ 7.39 | |||||
| F35 | 5304485443 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F36 | 5304493236 | Motor,fan |
|
- | |||||
| F37 | 5304504802 | Fan Blade,axial (Replaces: 5304476059) |
|
- | |||||
| F5 | 5304476796 | · Louver,vertical |
|
- | |||||
| F6 | 5304476797 | · Louver,horizontal ,left |
|
- | |||||
| F7 | 5304476798 | · Louver,horizontal ,right |
|
- | |||||
| F8 | 5304491946 | Pc Board,display/input |
|
- | |||||
| F9 | 5304482356 | · Wire,connecting |
|
- |
