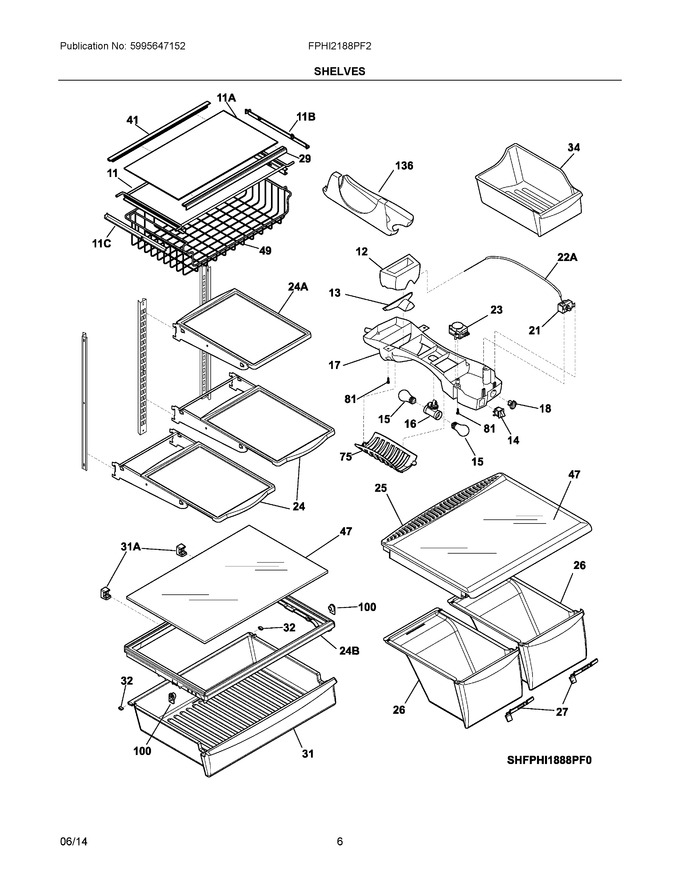

04 - Shelves


05 - System


06 - Ice Maker


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087803		Frame-shelf, Full Width		Appelez-nous	-
12	240545901		Diffuser-air, Top				$ 77.96
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	240364201		Socket-light/lamp, Dual				$ 111.67
17	240368105		Box-control, Front			Immediately	$ 144.93
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 80.34
23	215846604		Timer-defrost   (Replaces: 241809402)			Immediately	$ 27.31
24	240350143		Shelf-"spill-safe", Cantilever, Sliding				$ 179.24
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218504)				$ 133.09
27	242215901		Slide, Humidity Contrl				$ 21.06
29	242110902		Trim-shelf, Front				$ 34.97
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 287.69
32	240349801		Clip-slide, Pan				$ 22.75
34	240385201		Container, Ice Bin				$ 108.70
41	242111002		Trim-shelf, Rear		Appelez-nous	-
47	240350609		Insert-pan Cover, Glass				$ 180.33
49	241833201		Basket-sliding, Full Sliding, Wire, Frzr		Appelez-nous	-
75	240412701		Shield, Light   (Replaces: 240412702)				$ 18.11
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
100	241768601		Support-crspr Cover				$ 21.26
136	241657701		Dispenser-can, White				$ 63.79
11A	242087901		Glass-shelf, Full Shelf		Appelez-nous	-
11B	241848701		Cover, Hanger Rh, Wire Basket		Appelez-nous	-
11C	241848702		Cover, Hanger Lh, Wire Basket		Appelez-nous	-
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 10.11
24A	240355261		Shelf-"spill-safe", Fixed				$ 168.53
24B	242205404		Cover, Deli Pan, Full Width   (Replaces: 242205402)				$ 128.92
31A	242205501		Support-shelf, Fw Pantry, Rear				$ 16.28
NI	807407006		Label, Energy Guide		Appelez-nous	-
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 18.90
NIA	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 240570304)				$ 34.84
NIA	5303299664		Spacer, Shelf				$ 26.78
NIB	240568606		Seal   (Replaces: 240568607)				$ 14.18
NIBA	240362101		Clip-slide, Cover				$ 52.25
NIBB	241872203		Support-beam				$ 59.83
NIC	240388701		Wiring Harness, Control Box			Immediately	$ 88.99
