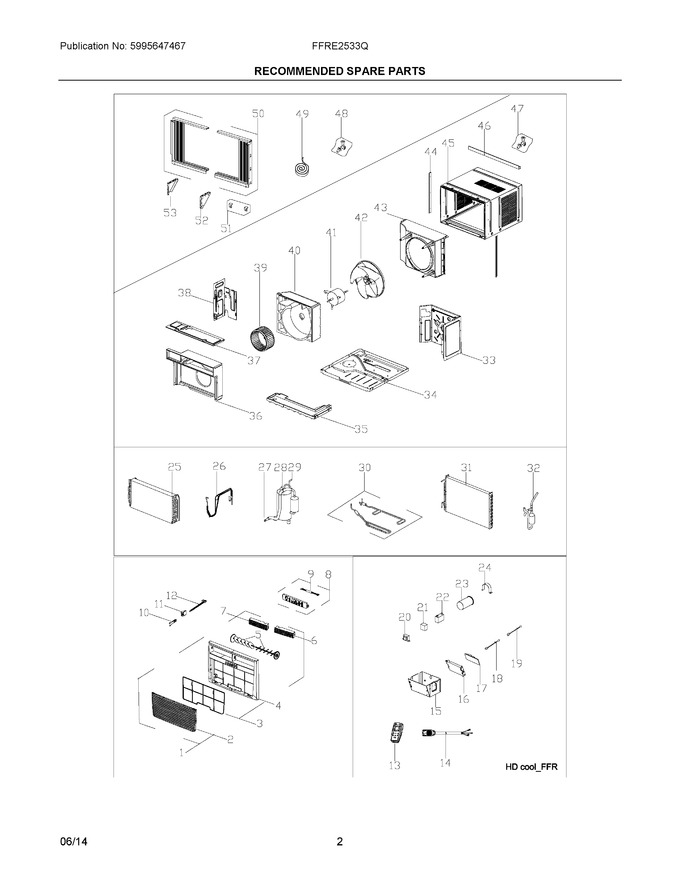

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304477142 | Front Assembly, Complete Panel |
|
$ 78.07 | |||||
| 2 | 5304477143 | Panel, Front Grille, Tilt-out |
|
- | |||||
| 3 | 5304535829 | Filter, Air, Plastic Frame (Replaces: 5304477144) |
|
$ 8.69 | |||||
| 4 | 5304477145 | Panel, Frame, Front |
|
- | |||||
| 5 | 5304477146 | Louver, Vertical |
|
- | |||||
| 6 | 5304477147 | Louver, Horizontal, Right |
|
- | |||||
| 7 | 5304477148 | Louver, Horizontal, Left |
|
- | |||||
| 8 | 5304496250 | Display Board Asmy |
|
- | |||||
| 9 | 5304496251 | Wire, Connector, Pc Boards |
|
- | |||||
| 10 | 5304495010 | Handle, Vent Control |
|
- | |||||
| 11 | 5304529409 | Link, Lever/vent Door, Detente (Replaces: 5304476359) |
|
- | |||||
| 12 | 5304477149 | Door, Vent Control, With Lever |
|
- | |||||
| 13 | 5304501878 | Remote Control, Transmitter (Replaces: 5304476851) |
|
$ 102.58 | |||||
| 14 | 5304476247 | Power Cord, Electric, Lcdi |
|
- | |||||
| 15 | 5304495028 | Control Box |
|
- | |||||
| 16 | 5304495029 | Holder, Mounting Plate, Control |
|
- | |||||
| 17 | 5304496252 | Pc Board, Main, Control/power |
|
- | |||||
| 18 | 5304512374 | Thermistor, Temp Sensor, Indoor (Replaces: 5304491883) |
|
- | |||||
| 19 | 5304512375 | Sensor, Temperature, Evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| 20 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| 21 | 5304472418 | Ionizer, Anion Generator |
|
- | |||||
| 22 | 5304521130 | Capacitor, Fan Motor (Replaces: 5304482883) |
|
- | |||||
| 23 | 5304493844 | Capacitor, Compressor |
|
- | |||||
| 24 | 5304472399 | Strap, Capacitor Clamp |
|
- | |||||
| 25 | 5304495031 | Evaporator, +capillary Tube |
|
- | |||||
| 26 | 5304495032 | Tube, Capillary |
|
- | |||||
| 27 | 5304495033 | Tube, Suction |
|
- | |||||
| 28 | 5304493843 | Compressor |
|
- | |||||
| 29 | 5304495034 | Tube, Discharge |
|
- | |||||
| 30 | 5304484144 | Tube, Condensate Evap, Drain Pan |
|
- | |||||
| 31 | 5304495035 | Condenser |
|
- | |||||
| 32 | 5304476257 | Dryer-filter |
|
- | |||||
| 33 | 5304495036 | Bulkhead, Partition, Front/right |
|
- | |||||
| 34 | 5304476258 | Base, Unit Chassis |
|
- | |||||
| 35 | 5304472343 | Tray, Drip Pan, Foam |
|
- | |||||
| 36 | 5304495037 | Scroll, Blower Housing, Front |
|
- | |||||
| 37 | 5304495038 | Cover, Blower Scroll, Front |
|
- | |||||
| 38 | 5304495039 | Bulkhead, Partition, Front/left |
|
- | |||||
| 39 | 5304521140 | Blower Wheel, Centrifugal Fan (Replaces: 5304472407) |
|
- | |||||
| 40 | 5304476262 | Scroll, Blower Housing, Rear |
|
- | |||||
| 41 | 5304521142 | Motor, Fan (Replaces: 5304482882) |
|
- | |||||
| 42 | 5304538708 | Fan Blade, Axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| 43 | 5304495040 | Shroud, Condenser/fan |
|
- | |||||
| 44 | 5304487540 | Cabinet, Wrapper/sleeve |
|
- | |||||
| 45 | 5304485992 | Cabinet, Wrapper/sleeve |
|
- | |||||
| 46 | 5304476265 | Rail, Shutter Track, Top Channel |
|
- | |||||
| 47 | 5304472364 | Screw Kit, Top Rail Mount |
|
- | |||||
| 48 | 5304476266 | Hardware, Mounting, Screws/locks |
|
- | |||||
| 49 | 5304472366 | Seal Kit, Foam, Sash & Rails |
|
- | |||||
| 50 | 5304476267 | Window Filler Kit, Slider Panels, Accordion |
|
- | |||||
| 51 | 5304472360 | Bracket, Sill Angle |
|
- | |||||
| 52 | 5304482508 | Bracket, Mounting, Right Window |
|
- | |||||
| 53 | 5304482509 | Bracket, Mounting, Left Window |
|
- |
