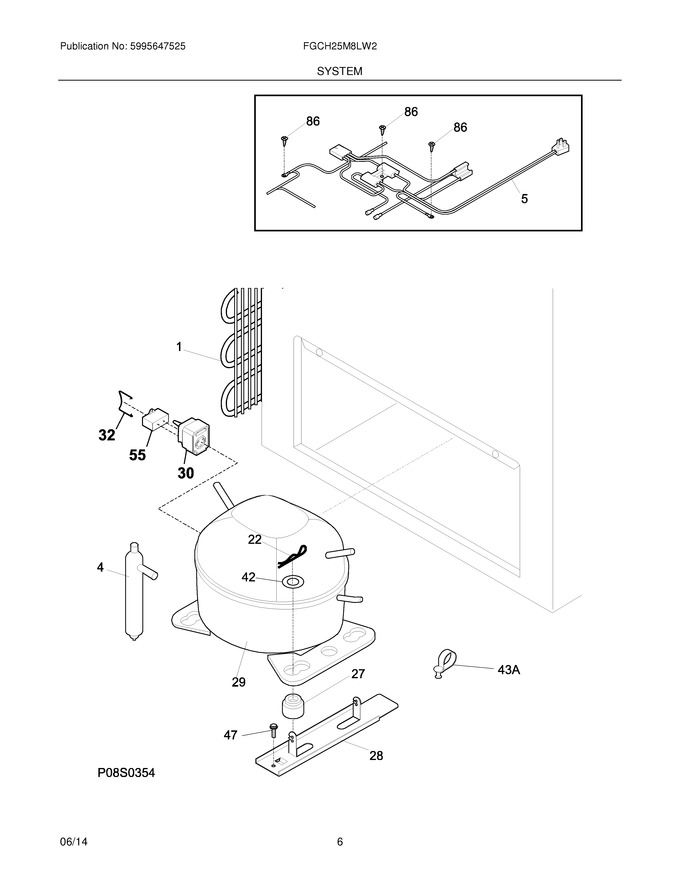

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300300173		Condenser		Appelez-nous	-
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 35.19
5	5304503686		Harness,main   (Replaces: 297346212)				$ 95.82
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 3.15
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
28	5304464023		Support,compressor		Appelez-nous	-
29	297438403		Compressor,djk73c		Appelez-nous	-
30	216954228		Controller				$ 94.50
32	216954300		Clip,controller				$ 18.90
42	216232701		Washer,flat				$ 2.10
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 14.46
55	297286803		Capacitor-run			Immediately	$ 31.97
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
43A	5303212614		Clip,harness Mount				$ 3.20
NI	297102800		Spacer-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
