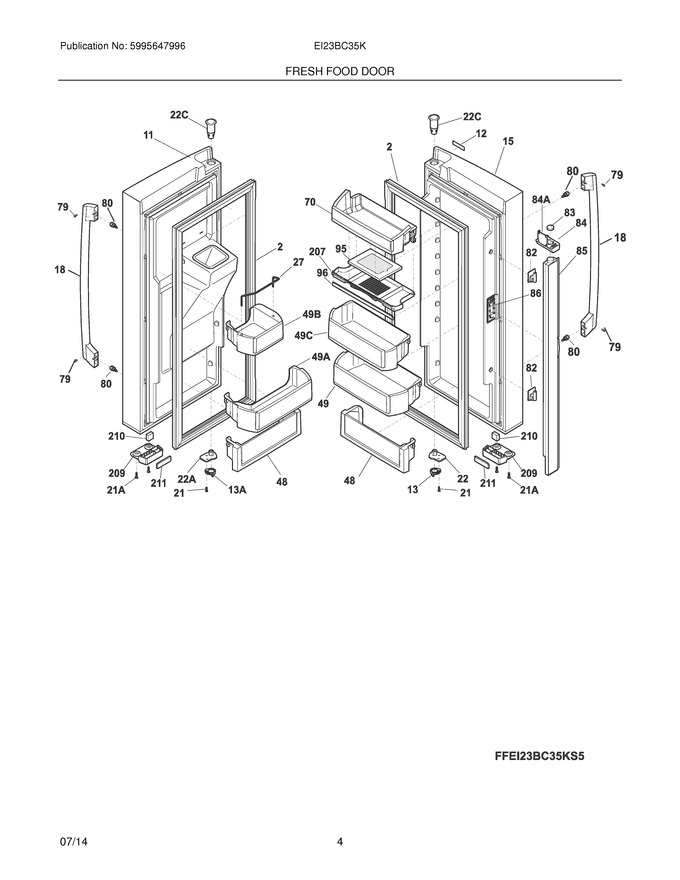

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Grey, Magnetic (Replaces: 241778303) |
|
Immediately | $ 99.87 | ||||
| 11 | 241988090 | Door-refr,black ,lh |
|
- | |||||
| 12 | 241873302 | Nameplate,black |
|
$ 10.21 | |||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 20.48 | |||||
| 15 | 241988089 | Door-refr,black ,rh |
|
- | |||||
| 18 | 241881321 | Handle-refr Door,black ,(2) |
|
- | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 17.33 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 27 | 241752702 | Retainer,tall Bottle |
|
$ 43.82 | |||||
| 48 | 241804303 | Bin-door,can |
|
$ 103.75 | |||||
| 49 | 241804006 | Bin-door,gallon |
|
$ 122.90 | |||||
| 70 | 242131801 | Bin-door,1/2 Gallon |
|
$ 96.69 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw,shoulder ,no.10-ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 24.43 | ||||
| 83 | 241812202 | Magnet,freezer Drawer |
|
$ 80.33 | |||||
| 84 | 808274201 | Guide-mullion,magnet Cover ,flipper |
|
Immediately | $ 40.45 | ||||
| 85 | 241778808 | Flipper Mullion Assembly,w/heater |
|
Immediately | $ 350.44 | ||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 45.83 | ||||
| 95 | EAFCBF | Filter,air (Replaces: 242047801) |
|
Immediately | $ 30.71 | ||||
| 96 | 242048001 | Trim-door Air Filter,w/graphics |
|
$ 48.88 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 89.32 | |||||
| 209 | 242291002 | Housing,magnet ,black |
|
$ 21.26 | |||||
| 210 | 241779101 | Magnet,door |
|
Immediately | $ 34.65 | ||||
| 211 | 241979602 | Bumper,rubber ,black |
|
- | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 20.48 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 27.80 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 21.26 | ||||
| 49A | 241896003 | Bin-door,2-liter |
|
$ 112.04 | |||||
| 49B | 241906302 | Bin-door,dispenser |
|
$ 49.61 | |||||
| 49C | 241896103 | Bin-door,1/2 Gallon |
|
$ 108.52 | |||||
| 84A | 5303918644 | Cover-mullion,magnet Cover (Replaces: 242190501) |
|
$ 46.04 | |||||
| NI | 241926002 | Harness-wiring,door |
|
$ 47.99 | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| NI | 241891104 | Light-led |
|
- | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 242068601 | Bumper,flipper Mullion |
|
$ 16.01 | |||||
| NI | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NI | 240451503 | Screw (Replaces: 242064001) |
|
$ 4.21 | |||||
| NI | 241788402 | Harness-wiring,flipper Mullion |
|
- | |||||
| NI | 241601002 | Wrench,allen |
|
- |
