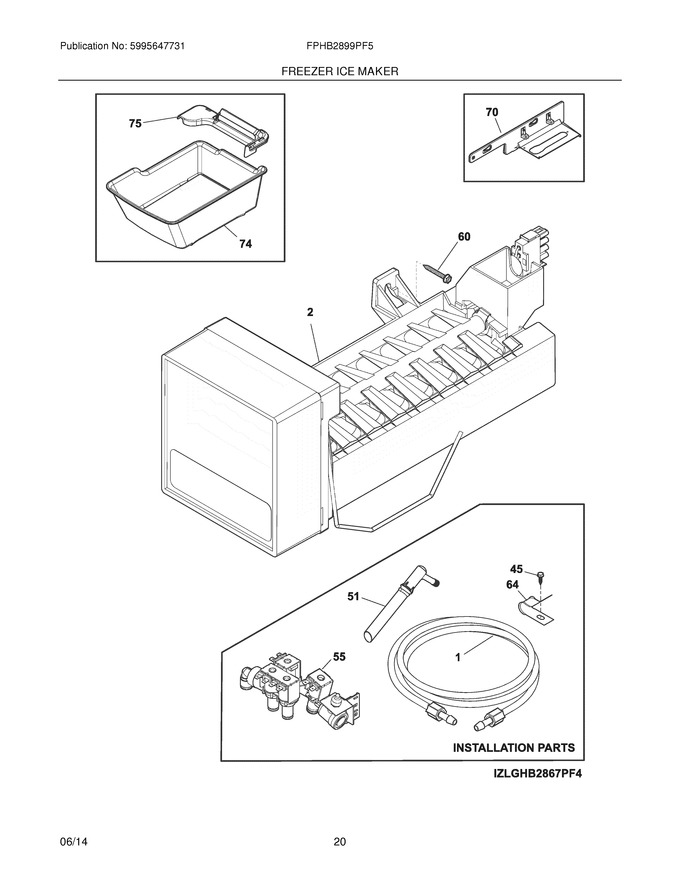

FPHB2899PF5 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	218976436	Tube-water,5/16 - 42`` ,yellow ,sd (Replaces: 218976434)		Immediately	$ 9.45
2	5303918493	Ice Maker,radius Cube ,115 V ,service (Replaces: 241798219)		Immediately	$ 257.72
45	5304453923	Screw,hex Hd Wshr ,no.8-32 X 1/2	Appelez-nous	-
51	242169404	Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension	Appelez-nous	-
55	242253002	Valve-water,quad Solenoid		Immediately	$ 271.94
60	5304455852	Screw,hex Washer Head ,8-15a X 1.000 ,(2) (Replaces: 5303207328)			$ 14.18
64	5304453921	Clamp-cable	Appelez-nous	-
70	242041701	Bracket-ice Maker			$ 78.75
74	242127901	Container-ice			$ 219.08
75	242240101	Shield,ice Bucket ,wide			$ 85.47
NI	240555002	Screw,hex Washer Head ,8-32t X 0.375 (Replaces: 241690701)		Immediately	$ 14.96
NI	241503901	Connector-water,straight ,5/16 To 1/4			$ 56.91
NI	241806601	Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001)		Immediately	$ 78.40
NI	5303918571	Tube-water,ice Mold Fill ,black ,extension (Replaces: 241844403)			$ 182.49
NI	241920106	Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces: 241920104)		Immediately	$ 67.41
NI	241964707	Tube-water,1/4 - 36`` ,green		Immediately	$ 20.48
NI	241965906	Tube-water,5/16 - 67`` ,natural		Immediately	$ 26.78
NI	242220204	Tube-water Inlet,.315 - 93.50`` ,brown/tan (Replaces: 242220201)		Immediately	$ 44.80
NI	242220202	Tube-water Inlet,.315 - 57.50`` ,natural			$ 32.29
NI	218709101	Screw,hex Head ,10-32 X 0.500			$ 7.09
NI	240363602	Screw-shoulder			$ 15.17
NI	5304515677	Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406)		Immediately	$ 21.37
