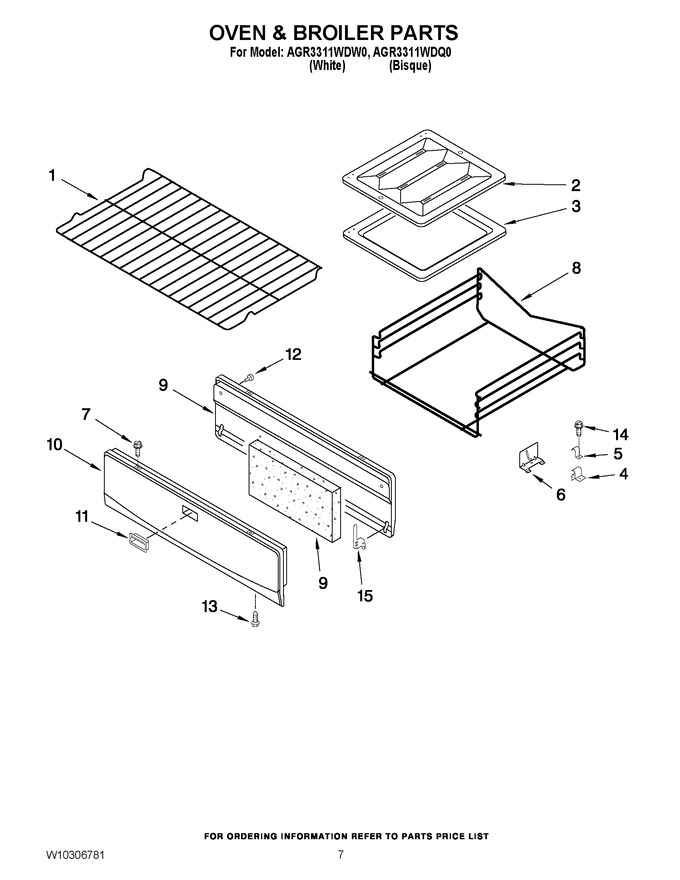

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98014136		Rack, Oven		Appelez-nous	-
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 104.64
3	WP98016005		Pan, Broiler   (Replaces: 98016005)				$ 90.96
4	98004715		Guide, Rack		Appelez-nous	-
5	98008341		Cover, Guide		Appelez-nous	-
6	98004761		Bracket, Rack		Appelez-nous	-
7	3196166		Screw   (Replaces: 98006727)				$ 7.36
8	98016570		Rack, Broiler		Appelez-nous	-
9	W10137230		Insulation, Door		Appelez-nous	-
10	98009341		Panel, Drawer (bisque)		Appelez-nous	-
10	98009342		Panel, Drawer (white)		Appelez-nous	-
11	WP3405189		Handle, Drawer (bisque)   (Replaces: 98008488)				$ 91.06
11	WP3405184		Handle, Drawer (white)   (Replaces: 98008486)				$ 79.81
12	98004052		Bumper, Door		Appelez-nous	-
13	WP3400805		Screw   (Replaces: 98004219)				$ 7.55
14	W10837731		Screw   (Replaces: 98006633)				$ 8.30
15	W10201341		Hinge, Brlr Door		Appelez-nous	-
