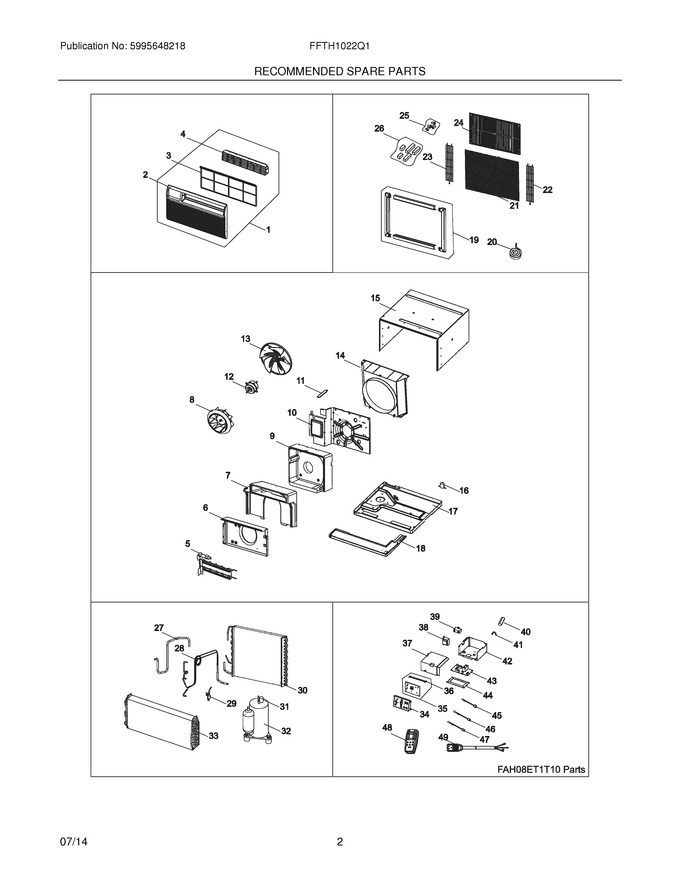

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304492061 | Front Assembly,complete Panel |
|
- | |||||
| 2 | 5304476435 | · Panel,front Grille |
|
- | |||||
| 3 | 5304476436 | · Filter,air ,plastic Frame |
|
- | |||||
| 4 | 5304492062 | · Louver,horizontal |
|
- | |||||
| 5 | 5304521227 | Heater,electric (Replaces: 5304476390) |
|
- | |||||
| 6 | 5304476621 | Panel,heater Support ,housing |
|
- | |||||
| 7 | 5304476622 | Scroll,blower Housing ,front |
|
- | |||||
| 8 | 5304476623 | Blower Wheel,centrifugal Fan |
|
- | |||||
| 9 | 5304476439 | Scroll,blower Housing ,rear |
|
- | |||||
| 10 | 5304470964 | Bulkhead,air System |
|
- | |||||
| 11 | 5304470965 | Rod,connecting Link |
|
- | |||||
| 12 | 5304476910 | Motor,fan |
|
- | |||||
| 13 | 5304470971 | Fan Blade |
|
$ 82.41 | |||||
| 14 | 5304492058 | Shroud,fan Housing ,condenser |
|
- | |||||
| 15 | 5304496447 | Cabinet,wrapper/sleeve |
|
- | |||||
| 16 | 5304476624 | Valve,drain |
|
- | |||||
| 17 | 5304492063 | Base,unit Chassis |
|
- | |||||
| 18 | 5304470961 | Tray,drip Pan |
|
- | |||||
| 19 | 5304476442 | Trim,frame ,top/bottom/side |
|
- | |||||
| 20 | 5304470974 | Seal,stuffer ,foam ,wall/sleeve |
|
- | |||||
| 21 | 5304470975 | Grille,plastic ,rear |
|
- | |||||
| 22 | 5304482547 | Grille,air Inlet ,right Rear |
|
- | |||||
| 23 | 5304482548 | Grille,air Inlet ,left Rear |
|
- | |||||
| 24 | 5304482549 | Grille,sleeve ,aluminum ,rear |
|
- | |||||
| 25 | 5304470978 | Fastener Kit,rear Grille ,screws |
|
- | |||||
| 26 | 5304470979 | Seal & Spacer Kit |
|
- | |||||
| 27 | 5304496468 | Tube,discharge |
|
- | |||||
| 28 | 5304496481 | Tube,capillary |
|
- | |||||
| 29 | 5304476367 | Filter-dryer |
|
$ 45.55 | |||||
| 30 | 5304483412 | Condenser |
|
- | |||||
| 31 | 5304496482 | Overload Protector,compressor |
|
- | |||||
| 32 | 5304496471 | Compressor,with Overload |
|
- | |||||
| 33 | 5304496483 | Evaporator,+capillary Tube |
|
- | |||||
| 34 | 5304492064 | Control Panel,with Overlay |
|
- | |||||
| 35 | 5304470987 | Pc Board,display/input |
|
- | |||||
| 36 | 5304480400 | · Wire,connector ,pc Boards |
|
- | |||||
| 37 | 5304476448 | Cover,control Box |
|
- | |||||
| 38 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| 39 | 5304512430 | Capacitor,fan Motor (Replaces: 5304471077) |
|
- | |||||
| 40 | 5304493242 | Capacitor,compressor |
|
- | |||||
| 41 | 5304476616 | Strap,capacitor Clamp |
|
- | |||||
| 42 | 5304476617 | Control Box |
|
- | |||||
| 43 | 5304496484 | Pc Board,control ,main |
|
- | |||||
| 44 | 5304495029 | Holder,mounting Plate ,control |
|
- | |||||
| 45 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| 46 | 5304512374 | Thermistor,temp Sensor ,indoor (Replaces: 5304491883) |
|
- | |||||
| 47 | 5304476316 | Sensor,temperature ,discharge Air ,daht |
|
- | |||||
| 48 | 5304476631 | Remote Control,transmitter |
|
- | |||||
| 49 | 5304487625 | Power Cord,electric ,lcdi |
|
- |
