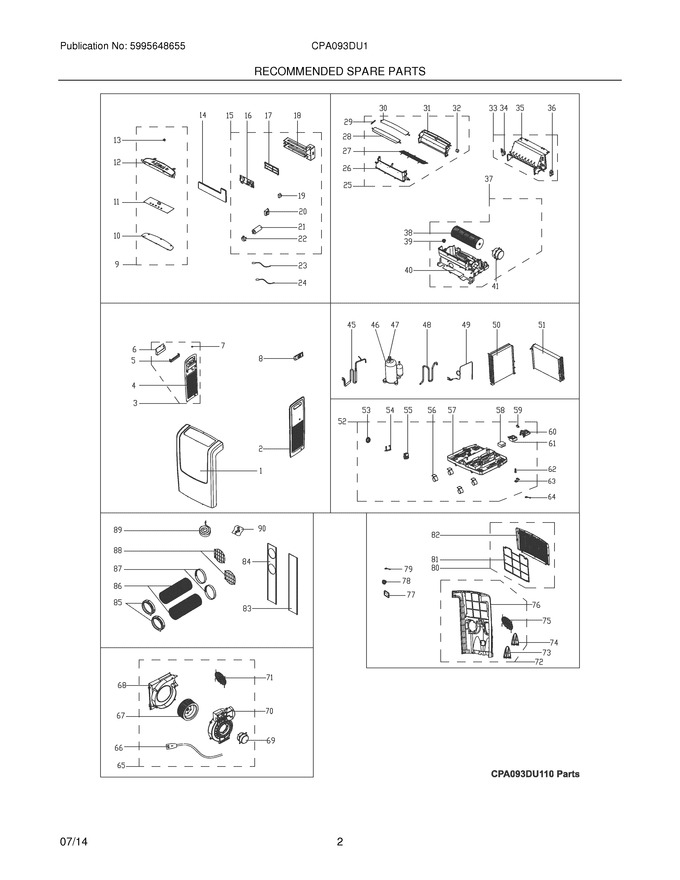

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304479155 | Panel Assembly,front |
|
- | |||||
| 2 | 5304479156 | Panel,right Side |
|
- | |||||
| 3 | 5304486923 | Panel Assembly,left Side |
|
- | |||||
| 4 | 5304486922 | · Panel,left Side |
|
- | |||||
| 5 | 5304479162 | · Door,storage ,remote Control |
|
- | |||||
| 6 | 5304479163 | · Compartment,remote Control |
|
- | |||||
| 7 | 5304479159 | · Switch,self-locking |
|
- | |||||
| 8 | 5304479314 | Remote Control,transmitter |
|
$ 284.34 | |||||
| 9 | 5304479165 | Console Assembly,control |
|
- | |||||
| 10 | 5304479166 | · Cover,control Panel |
|
- | |||||
| 11 | 5304479167 | · Pc Board,display/input |
|
$ 148.21 | |||||
| 12 | 5304486924 | · Panel,control Mount ,w/overlay |
|
- | |||||
| 13 | 5304473963 | · Lens,remote Sensor |
|
- | |||||
| 14 | 5304473964 | Cover,control Box |
|
- | |||||
| 15 | 5304486925 | Control Box Assembly |
|
- | |||||
| 16 | 5304479316 | · Pc Board,main ,control/power |
|
$ 215.17 | |||||
| 17 | 5304487019 | · Bracket,pc Board Mount |
|
- | |||||
| 18 | 5304473969 | · Control Box,housing ,bottom |
|
- | |||||
| 19 | 5304484402 | · Capacitor,motor ,outdoor Blower |
|
- | |||||
| 20 | 5304473972 | · Transformer,power |
|
- | |||||
| 21 | 5304473968 | · Capacitor,compressor |
|
- | |||||
| 22 | 5304482115 | · Strap,capacitor Clamp |
|
- | |||||
| 23 | 5304476473 | Thermistor,evaporator ,sensor |
|
- | |||||
| 24 | 5304483216 | Sensor,temperature |
|
- | |||||
| 25 | 5304479171 | Vent Assembly,air Discharge |
|
- | |||||
| 26 | 5304479172 | · Bracket 1,louver Mount |
|
- | |||||
| 27 | 5304479173 | · Grille,air Vent Cover |
|
- | |||||
| 28 | 5304479174 | · Louver,horizontal ,down |
|
- | |||||
| 29 | 5304479175 | · Link,louver ,horizontal |
|
- | |||||
| 30 | 5304479176 | · Louver,horizontal ,up |
|
- | |||||
| 31 | 5304479177 | · Bracket 2,louver Mount |
|
- | |||||
| 32 | 5304492148 | · Motor,vent Louvers |
|
- | |||||
| 33 | 5304479193 | Scroll Assembly,indoor ,top |
|
- | |||||
| 34 | 5304479195 | · Support,front Panel ,right Side |
|
- | |||||
| 35 | 5304479197 | · Scroll,indoor Blower ,top |
|
- | |||||
| 36 | 5304479196 | · Support,front Panel ,left Side |
|
- | |||||
| 37 | 5304479198 | Scroll Assembly,indoor ,bottom |
|
$ 305.50 | |||||
| 38 | 5304479247 | · Blower Wheel,indoor Fan |
|
$ 97.91 | |||||
| 39 | 5304473990 | · Bearing Block,housing |
|
- | |||||
| 40 | 5304479248 | · Scroll,indoor Blower ,bottom |
|
- | |||||
| 41 | 5304473988 | · Motor,indoor Blower |
|
$ 236.15 | |||||
| 45 | 5304479318 | Tube,discharge |
|
- | |||||
| 46 | 5304492149 | Compressor,with Overload |
|
- | |||||
| 47 | 5304492150 | · Overload Protector,compressor |
|
- | |||||
| 48 | 5304492151 | Tube,suction |
|
- | |||||
| 49 | 5304492152 | Tube,capillary |
|
- | |||||
| 50 | 5304479321 | Condenser |
|
- | |||||
| 51 | 5304492153 | Evaporator |
|
- | |||||
| 52 | 5304479254 | Base Assembly,chassis |
|
- | |||||
| 53 | 5304474028 | · Slinger,water Wheel ,condensate |
|
- | |||||
| 54 | 5304496613 | · Bracket,slinger Motor |
|
- | |||||
| 55 | 5304479255 | · Motor,slinger |
|
- | |||||
| 56 | 5304479256 | · Caster,roller |
|
$ 29.98 | |||||
| 57 | 5304479257 | · Base,unit Chassis |
|
- | |||||
| 58 | 5304474023 | · Float,bobber |
|
- | |||||
| 59 | 5304474021 | · Microswitch,upper ,overflow |
|
- | |||||
| 60 | 5304486932 | · Bracket,switch Holder |
|
- | |||||
| 61 | 5304486933 | · Housing,float Case |
|
- | |||||
| 62 | 5304492154 | · Switch,float ,lower ,pump-out |
|
- | |||||
| 63 | 5304474025 | · Bracket,float Switch |
|
- | |||||
| 64 | 5304479260 | Plug,drain ,chassis/base |
|
$ 15.18 | |||||
| 65 | 5304479261 | Scroll Assembly,outdoor Blower |
|
- | |||||
| 66 | 5304487021 | · Power Cord,electric ,lcdi |
|
$ 225.07 | |||||
| 67 | 5304487022 | · Blower Wheel,outdoor Fan |
|
$ 66.05 | |||||
| 68 | 5304479263 | · Cover,scroll ,outdoor Blower |
|
$ 299.99 | |||||
| 69 | 5304479264 | · Motor,outdoor Blower |
|
$ 328.81 | |||||
| 70 | 5304479265 | · Scroll,outdoor Blower |
|
- | |||||
| 71 | 5304479266 | · Screen,exhaust |
|
- | |||||
| 72 | 5304486982 | Panel Assembly,rear |
|
- | |||||
| 73 | 5304486983 | · Holder,exhaust Hose ,left |
|
- | |||||
| 74 | 5304486984 | · Holder,exhaust Hose ,right |
|
- | |||||
| 75 | 5304487023 | · Screen,exhaust |
|
- | |||||
| 76 | 5304486985 | · Panel,rear |
|
- | |||||
| 77 | 5304479269 | Door,storage ,power Cord |
|
- | |||||
| 78 | 5304474000 | Connector,drain Hose ,threaded |
|
$ 16.80 | |||||
| 79 | 5304473999 | Plug,drain Spigot |
|
$ 13.01 | |||||
| 80 | 5304479311 | Air Intake Assembly,indoor |
|
$ 75.97 | |||||
| 81 | 5304479312 | · Filter-a,air Intake ,indoor |
|
$ 24.57 | |||||
| 82 | 5304479313 | · Grille,air Intake ,indoor |
|
$ 58.96 | |||||
| 83 | 5304484440 | Window Slider-1,no Hole |
|
$ 110.88 | |||||
| 84 | 5304486940 | Window Slider,outside ,with Hole |
|
$ 99.14 | |||||
| 85 | 5304479114 | Adapter A,hose-to-unit |
|
$ 31.08 | |||||
| 86 | 4056015342 | Hose,exhaust (Replaces: 5304479273) |
|
- | |||||
| 87 | 5304538651 | Adapter B,hose-to-window (Replaces: 5304479274) |
|
- | |||||
| 88 | 5304479275 | Screen,exhaust Hose |
|
$ 88.60 | |||||
| 89 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| 90 | 5304484442 | Installation Kit,mtg. Hardware |
|
$ 14.96 |
