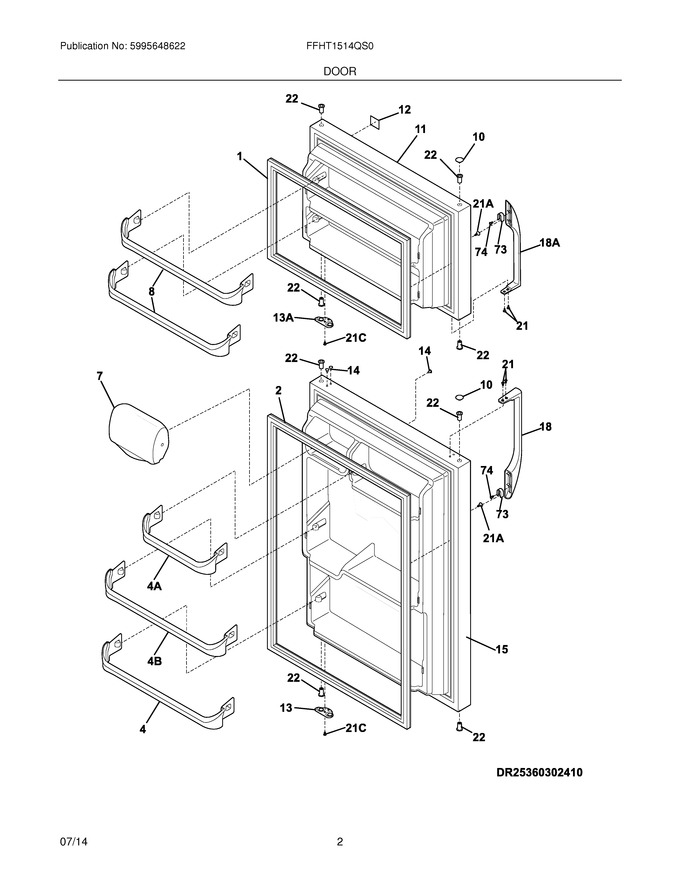

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193207		Gasket-frzr Door,black ,magnetic				$ 204.91
2	242193208		Gasket-frzr Door,black ,magnetic			Immediately	$ 204.91
4	240535101		Rack-door			Immediately	$ 31.74
7	240337712		Door-dairy			Immediately	$ 40.45
8	240535001		Rack-door			Immediately	$ 53.55
10	240381307		Plug-button,gray ,hinge Brg Hole ,(2)			Immediately	$ 18.54
11	5304497440		Freezer Door,complete ,stainless				$ 205.26
12	242016301		Nameplate,frigidaire				$ 4.73
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 16.85
14	240494007		Plug-button,gray			Immediately	$ 17.69
15	5304497441		Refrigerator Door,complete ,stainless				$ 363.12
18	5304506471		Handle-door,black ,refr-rh/frzr-lh   (Replaces: 242059506)			Immediately	$ 106.18
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 8.43
73	218396701		Block-handle Mtg,dovetail		Appelez-nous	-
74	240521303		Screw,no.10-16 X 1/2			Immediately	$ 33.55
13A	240312415		Door Stop,black ,frzr				$ 23.63
18A	5304506471		Handle-door,black ,refr-lh/frzr-rh   (Replaces: 242059503)			Immediately	$ 106.18
21A	215503203		Screw,cr Pan Hd ,10-16 X 0.500			Immediately	$ 7.88
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
4A	240535301		Rack-door,12.03``			Immediately	$ 45.69
4B	240535201		Rack-door			Immediately	$ 33.71
NI	218515401		Clip-grille				$ 19.69
