SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves

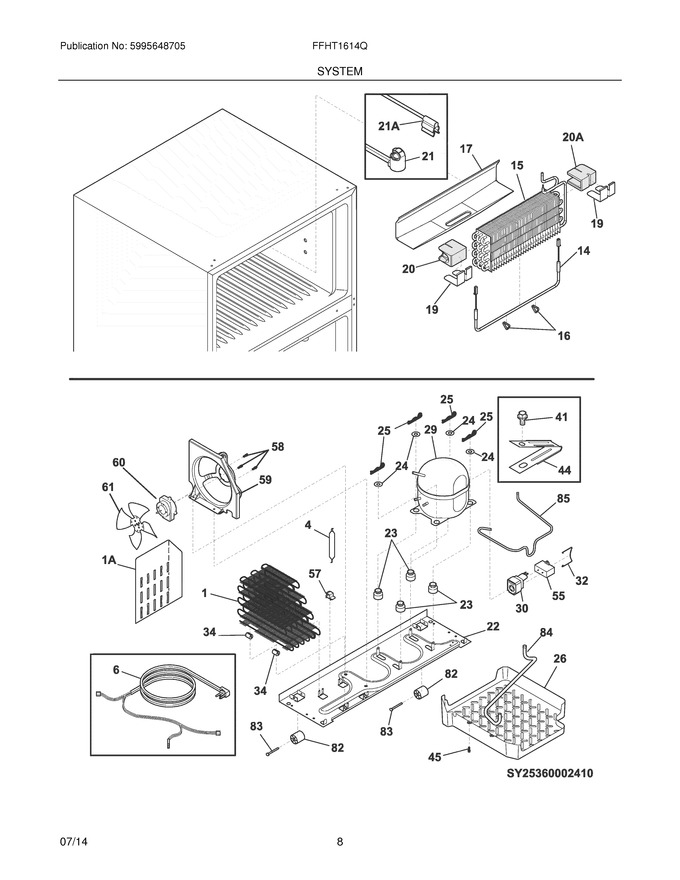

09 - System
10 - Wiring Schematic
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241785404 | Condenser,dynamic |
|
$ 188.21 | |||||
| 4 | 5303305677 | Dryer-filter,w/process Tube (Replaces: 242190201) |
|
Immediately | $ 35.19 | ||||
| 6 | 5304521786 | Harness-wiring,machine Compt (Replaces: 242019701) |
|
$ 140.72 | |||||
| 14 | 242044007 | Heater-defrost (Replaces: 242044019) |
|
Immediately | $ 58.79 | ||||
| 15 | 5303918275 | Evaporator Kit |
|
$ 381.62 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 17 | 241801302 | Trough-drain |
|
$ 92.69 | |||||
| 19 | 242320401 | Shield,heat ,evap Block |
|
$ 74.99 | |||||
| 20 | 5304527429 | Block,evaporator ,rh (Replaces: 242238401) |
|
$ 12.47 | |||||
| 21 | 242213501 | Thermostat,safety ,defrost (Replaces: 242303202) |
|
Immediately | $ 97.60 | ||||
| 22 | 241665605 | Base-compressor |
|
$ 155.93 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 47.25 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 14.32 | |||||
| 25 | 242037701 | Clip-compressor Mtg |
|
$ 3.15 | |||||
| 26 | 241920605 | Pan-defrost (Replaces: 241683601) |
|
$ 59.73 | |||||
| 29 | 240550946 | Compressor,w/o Electricals (Replaces: 240550937) |
|
Immediately | $ 440.73 | ||||
| 30 | 241941005 | Starter |
|
$ 127.60 | |||||
| 32 | 297030500 | Clamp,elec Cont Mtg ,compressor |
|
Immediately | $ 13.39 | ||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 22.05 | |||||
| 41 | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| 44 | 5304456288 | Clamp-wiring Harness,strain Relief ,galv Steel |
|
- | |||||
| 45 | 241500305 | Screw,hex Washer Head ,8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 31.97 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240569202 | Screw,8-18 X .500 |
|
$ 2.36 | |||||
| 59 | 242050604 | Shroud,cond Fan Motor (Replaces: 242050601) |
|
$ 30.71 | |||||
| 60 | 242018301 | Motor-condenser Fan (Replaces: 297279502) |
|
Immediately | $ 153.95 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 24.43 | ||||
| 82 | 240335202 | Roller,compressor Base ,rear |
|
$ 23.63 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 39.27 | ||||
| 84 | 240500801 | Tube-drain,rubber ,lower |
|
$ 72.45 | |||||
| 85 | 241871501 | Tube-connector,suction |
|
$ 42.53 | |||||
| 1A | 242213901 | Deflector,air |
|
$ 21.91 | |||||
| 20A | 5304527430 | Block,evaporator ,lh (Replaces: 242238301) |
|
$ 12.75 | |||||
| 21A | 242213501 | Thermistor,temperature ,defrost (Replaces: 242290502) |
|
Immediately | $ 97.60 | ||||
| NI | 218843801 | Screw,hex Wshr Hd ,8-15a X 0.500 |
|
$ 16.01 | |||||
| NI | 242213801 | Harness Assembly,wiring ,control Box |
|
$ 88.47 | |||||
| NI | 242213501 | Harness,wiring ,freezer Section ,w/defrost Therm |
|
Immediately | $ 97.60 | ||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 33.08 | |||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 4.21 | |||||
| NI | 5303918222 | Hot Tube Repair Kit,service |
|
$ 418.12 | |||||
| NI | 5303918263 | Heat Exchanger Kit,suction Line |
|
$ 512.40 | |||||
| NI | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 21.26 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 |
