01 - Cover

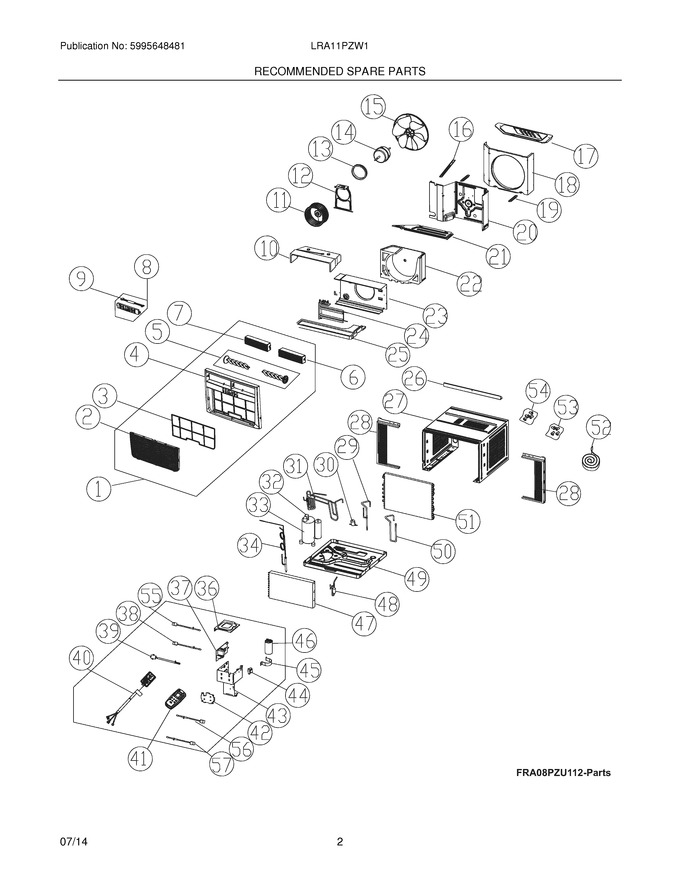

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304496435 | Front Assembly,complete Panel |
|
- | |||||
| 2 | 5304483223 | · Panel,front |
|
- | |||||
| 3 | 5304483224 | · Filter,air |
|
- | |||||
| 4 | 5304496436 | · Frame,front Assembly |
|
- | |||||
| 5 | 5304483226 | · Louver,vertical |
|
- | |||||
| 6 | 5304483227 | · Louver,horizontal ,right |
|
- | |||||
| 7 | 5304483228 | · Louver,horizontal ,left |
|
- | |||||
| 8 | 5304496261 | Pc Board,display/input |
|
- | |||||
| 9 | 5304495009 | · Wire,connector ,pc Boards |
|
- | |||||
| 10 | 5304483210 | Cover,scroll ,top |
|
- | |||||
| 11 | 5304471312 | Blower Wheel,centrifugal Fan |
|
- | |||||
| 12 | 5304471285 | Bracket,support ,fan Motor |
|
- | |||||
| 13 | 5304471286 | Washer,motor Mount ,anti-vibe |
|
- | |||||
| 14 | 5304471284 | Motor,fan |
|
- | |||||
| 15 | 5304517031 | Fan Blade (Replaces: 5304471287) |
|
- | |||||
| 16 | 5304471254 | Brace,bulkhead ,large ,connector |
|
- | |||||
| 17 | 5304471288 | Cover,condenser/fan ,rear |
|
- | |||||
| 18 | 5304483211 | Bulkhead,partition ,rear |
|
- | |||||
| 19 | 5304471253 | Brace,bulkhead ,small ,connector |
|
- | |||||
| 20 | 5304487602 | Bulkhead,partition ,front |
|
- | |||||
| 21 | 5304476388 | Cover,blower ,front |
|
- | |||||
| 22 | 5304471301 | Scroll,blower Housing ,rear |
|
- | |||||
| 23 | 5304495588 | Scroll,blower Housing ,front |
|
- | |||||
| 24 | 5304477339 | Heater,electric |
|
- | |||||
| 25 | 5304471265 | Tray,drip Pan |
|
- | |||||
| 26 | 5304476391 | Rail,shutter ,top Channel |
|
- | |||||
| 27 | 5304487606 | Cabinet,wrapper/sleeve |
|
- | |||||
| 28 | 5304476393 | Window Filler Kit,slider Panels ,accordion |
|
- | |||||
| 29 | 5304496443 | Tube,suction |
|
- | |||||
| 30 | 5304476323 | Valve,drain |
|
- | |||||
| 31 | 5304496444 | Valve,4-way |
|
- | |||||
| 33 | 5304495129 | Compressor,built-in Ovld |
|
- | |||||
| 34 | 5304496439 | Tube,capillary |
|
- | |||||
| 36 | 5304483214 | Cover, Electric Part Box |
|
- | |||||
| 37 | 5304496440 | Pc Board,main ,control/power |
|
- | |||||
| 38 | 5304512374 | Thermistor,temp Sensor ,indoor (Replaces: 5304491883) |
|
- | |||||
| 39 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| 40 | 5304476180 | Power Cord,electric ,lcdi |
|
$ 211.10 | |||||
| 41 | 5304534748 | Remote Control,transmitter (Replaces: 5304492053) |
|
- | |||||
| 42 | 5304487610 | Cover,display Board |
|
- | |||||
| 43 | 5304483218 | Control Box |
|
- | |||||
| 44 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| 45 | 5304477345 | Strap,capacitor Clamp |
|
- | |||||
| 46 | 5304495126 | Capacitor |
|
- | |||||
| 47 | 5304496441 | Evaporator,+capillary Tube |
|
- | |||||
| 48 | 5304476367 | Filter-dryer |
|
$ 45.55 | |||||
| 49 | 5304483220 | Chassis |
|
- | |||||
| 50 | 5304496445 | Tube,discharge |
|
- | |||||
| 51 | 5304492056 | Condenser |
|
- | |||||
| 52 | 5304471258 | Seal Kit,window ,foam Strips |
|
- | |||||
| 53 | 5304491884 | Hardware Kit,installation |
|
- | |||||
| 54 | 5304471256 | Screw Kit,top Rail Mount |
|
- | |||||
| 55 | 5304476316 | Sensor,temperature ,discharge Air ,daht |
|
- | |||||
| 56 | 5304490066 | Sensor,temperature ,condenser |
|
- | |||||
| 57 | 5304483216 | Sensor,temperature |
|
- |
