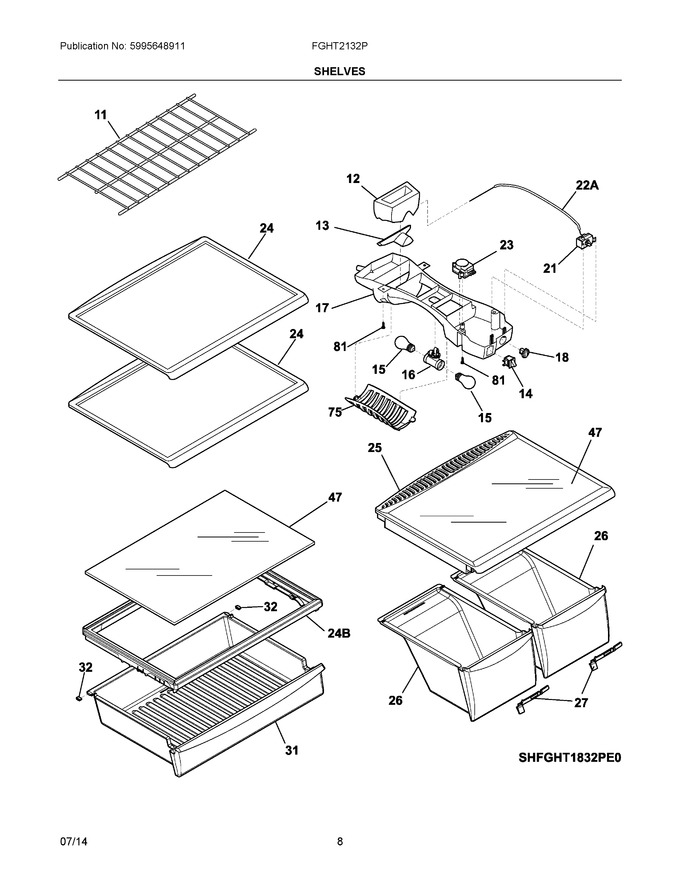

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358006		Shelf, Freezer, Full-width, Wire				$ 45.41
12	240545901		Diffuser-air, Top				$ 77.96
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	240364201		Socket-light/lamp, Dual				$ 111.67
17	240368105		Box-control, Front			Immediately	$ 144.93
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 80.34
23	215846604		Timer-defrost   (Replaces: 241809402)			Immediately	$ 27.31
24	240358928		Shelf-"spill-safe", Sliding   (Replaces: 240358927)			Immediately	$ 193.73
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl   (Replaces: 242218504)				$ 133.09
27	242215901		Slide, Humidity Contrl				$ 21.06
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 287.69
32	240349801		Clip-slide, Pan				$ 22.75
47	240350609		Insert-pan Cover, Glass				$ 180.33
75	240412701		Shield, Light   (Replaces: 240412702)				$ 18.11
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 10.11
24B	242205404		Cover, Deli Pan, Full Width   (Replaces: 242205402)				$ 128.92
NI	807407003		Label, Energy Guide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.88
NIA	240362101		Clip-slide, Cover				$ 52.25
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 18.90
NIA	240388701		Wiring Harness, Control Box			Immediately	$ 88.99
NIB	5303299664		Spacer, Shelf				$ 26.78
NIB	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 240570304)				$ 34.84
NIB	241872203		Support-beam				$ 59.83
