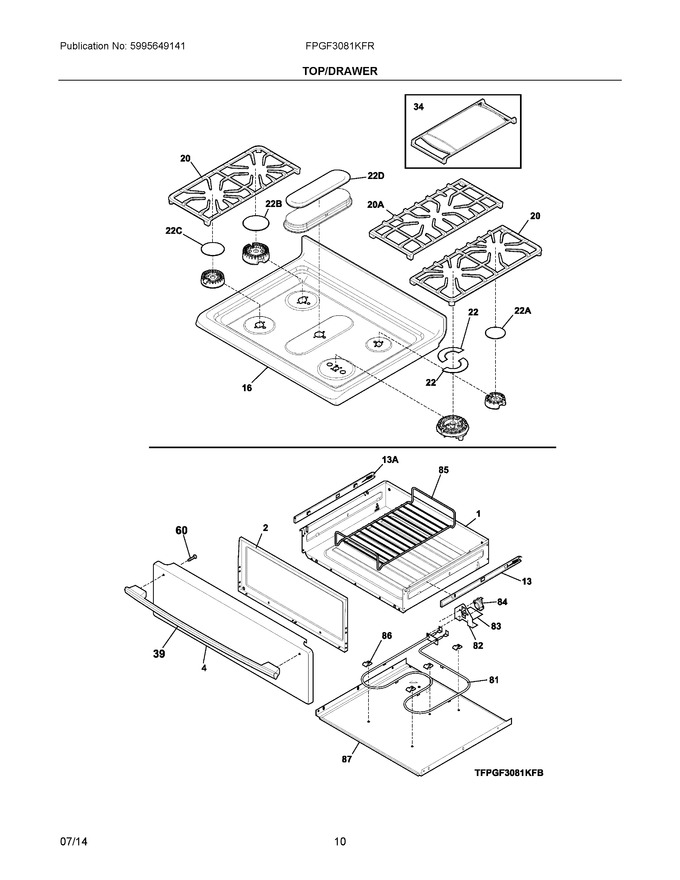

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408905		Drawer, Warmer   (Replaces: 316408901)				$ 159.39
2	5304527988		Liner, Black, Drawer   (Replaces: 316403203)			Immediately	$ 29.49
4	5304494412		Panel, Drawer, Stainless, Outer   (Replaces: 316409317)				$ 109.48
13	316415000		Glide, Warmer, Inner Rh				$ 65.36
16	316469665		Maintop Panel, Black				$ 202.91
20	316546202		Grate, Burner, Black, Sides, (2)		Appelez-nous	-
22	316262204		Cap, 17k Twin Burner, Black, (2)			Immediately	$ 80.89
34	316465800		Griddle				$ 142.49
39	5304532118		Handle, Door/drawer, Stainless   (Replaces: 316551500)				$ 125.42
60	316001013		Screw, Wafer Head, 10-24 X 1.375, Handle Mtg.			Immediately	$ 2.68
81	316437300		Element, Warmer Drawer				$ 117.97
82	316093200		Bracket, Element Mtg		Appelez-nous	-
83	316093300		Shield, Terminal, Warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc, Warmer Drawer				$ 56.70
85	807328301		Rack, Warmer Drawer				$ 96.90
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	316091900		Base, Warmer Drawer				$ 221.55
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 65.36
20A	316546102		Grate, Burner, Black, Center		Appelez-nous	-
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
NI	5304516184		Harness, Warm Base   (Replaces: 316525623)				$ 31.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 14.96
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37

    View Diagram in Separate Window       Print Part List
