View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet

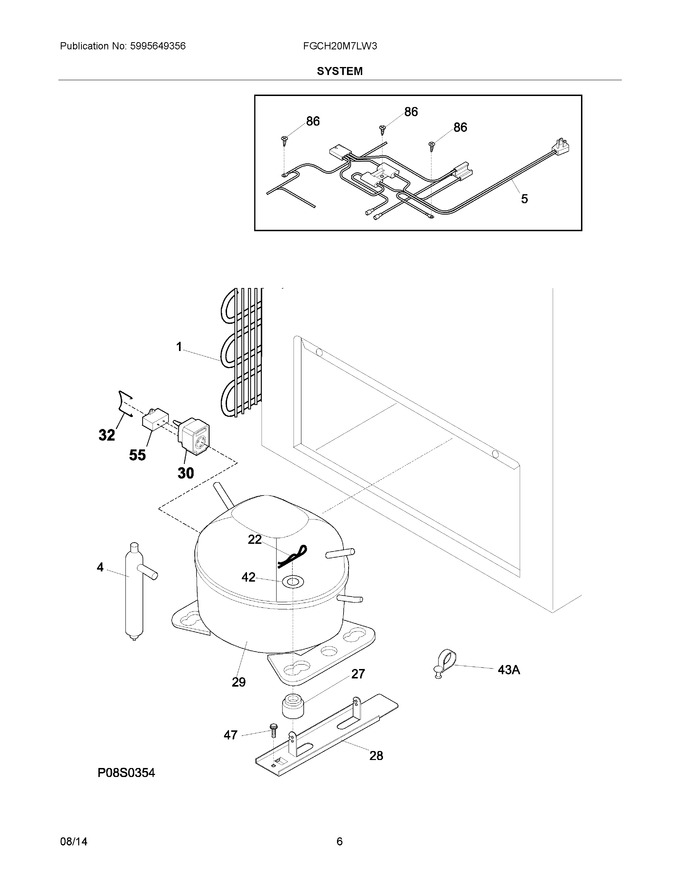

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303280307 | Condenser |
|
$ 640.71 | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 216987501) |
|
Immediately | $ 35.19 | ||||
| 5 | 5304503686 | Harness, Main (Replaces: 297346212) |
|
$ 95.82 | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 3.15 | |||||
| 27 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 47.25 | |||||
| 28 | 5304464023 | Support, Compressor |
|
- | |||||
| 29 | 240550948 | Compressor, W/o Electricals (Replaces: 297223500) |
|
Immediately | $ 325.00 | ||||
| 30 | 216954218 | Controller |
|
$ 101.12 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 18.90 | |||||
| 42 | 216232701 | Washer, Flat |
|
$ 2.10 | |||||
| 47 | 216629601 | Screw, Hex Washer Head, 10-16 X 0.500, Tapping |
|
$ 14.46 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 31.97 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 15.17 | |||||
| 43A | 5303212614 | Clip, Harness Mount |
|
$ 3.20 | |||||
| NI | 297102800 | Spacer-tube |
|
- |
