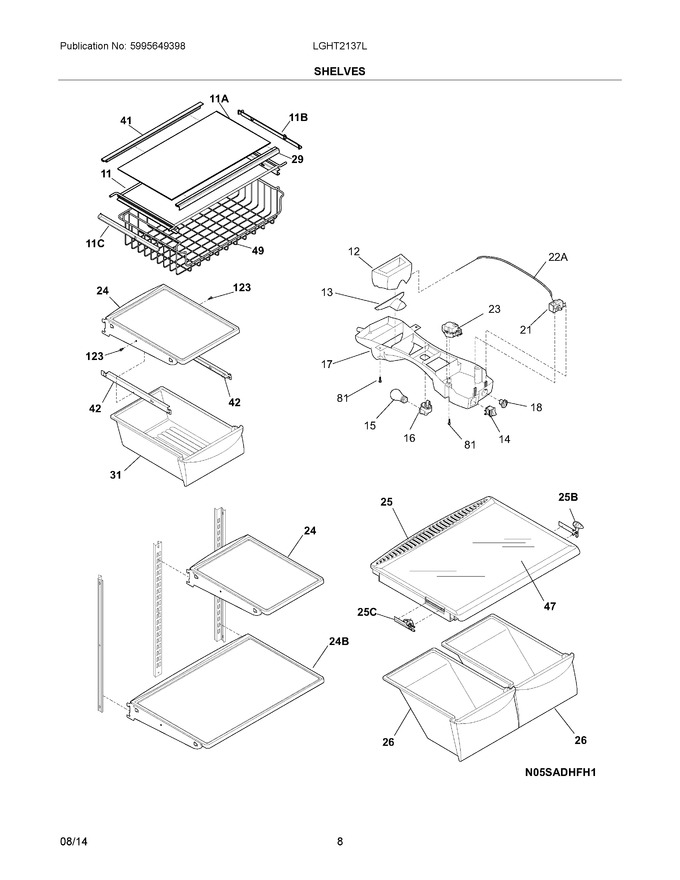

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242087803 | Frame-shelf, Full Width |
|
- | |||||
| 12 | 240545901 | Diffuser-air, Top |
|
$ 77.96 | |||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 46.46 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light |
|
$ 80.75 | |||||
| 17 | 240368105 | Box-control, Front (Replaces: 240368103) |
|
Immediately | $ 144.93 | ||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature (Replaces: 5304445058) |
|
Immediately | $ 98.11 | ||||
| 23 | 215846604 | Timer-defrost (Replaces: 241809402) |
|
Immediately | $ 27.31 | ||||
| 24 | 240355261 | Shelf-"spill-safe", Fixed |
|
$ 168.53 | |||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan, Crisper, (2) |
|
Immediately | $ 191.01 | ||||
| 29 | 242110902 | Trim-shelf, Front |
|
$ 34.97 | |||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear (Replaces: 240530803) |
|
Immediately | $ 158.35 | ||||
| 41 | 242111002 | Trim-shelf, Rear |
|
- | |||||
| 42 | 240356501 | Track, Meat Pan Hanger, Rh |
|
Immediately | $ 63.00 | ||||
| 47 | 240350609 | Insert-pan Cover, Glass |
|
$ 180.33 | |||||
| 49 | 241833201 | Basket-sliding, Full Sliding, Wire, Frzr |
|
- | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw, Hanger/rlr Mtg, 8-10 X 7/16 |
|
$ 16.54 | |||||
| 11A | 242087901 | Glass-shelf, Full Shelf |
|
- | |||||
| 11B | 241848701 | Cover, Hanger Rh, Wire Basket |
|
- | |||||
| 11C | 241848702 | Cover, Hanger Lh, Wire Basket |
|
- | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White |
|
$ 10.11 | |||||
| 24B | 240408909 | Shelf-"spill-safe", Cantilever Fixe |
|
$ 179.13 | |||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 53.09 | |||||
| 42A | 240365401 | Track, Meat Pan Hanger, Lh |
|
Immediately | $ 66.76 | ||||
| NI | 242028586 | Energy Guide |
|
- | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 18.90 | |||||
| NIA | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 240570304) |
|
$ 34.84 | |||||
| NIA | 5303299664 | Spacer, Shelf |
|
$ 26.78 | |||||
| NIB | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 88.99 |
