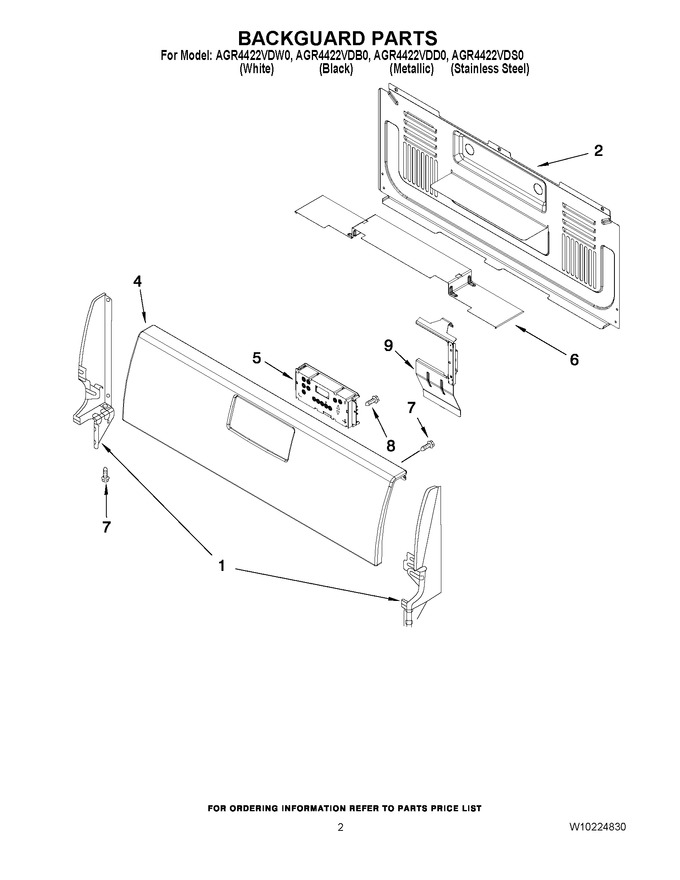

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98005336		Endcap (white Left)				$ 92.33
1	98005337		Endcap (white Right)				$ 92.42
1	98004633		Endcap (metallic Right)				$ 90.45
1	98004632		Endcap (metallic Left)				$ 88.90
2	98006083		Rear, Backguard		Appelez-nous	-
4	W10141573		Panel, Control (white)		Appelez-nous	-
4	W10193819		Panel, Control (stainless Steel)		Appelez-nous	-
4	W10141574		Panel, Control (black)		Appelez-nous	-
5	WP6610485		Control, Elec (black)   (Replaces: 6610485)				$ 320.40
5	WP6610486		Control, Elec (white)   (Replaces: 6610486)				$ 374.77
6	W10120794		Deflctor, Rear Cvr		Appelez-nous	-
7	WP3400805		Screw   (Replaces: 98015526)				$ 7.55
8	WP3400805		Screw   (Replaces: 98004219)				$ 7.55
9	98018144		Bracket, Timer (left)		Appelez-nous	-
9	98018143		Bracket, Timer (right)		Appelez-nous	-
